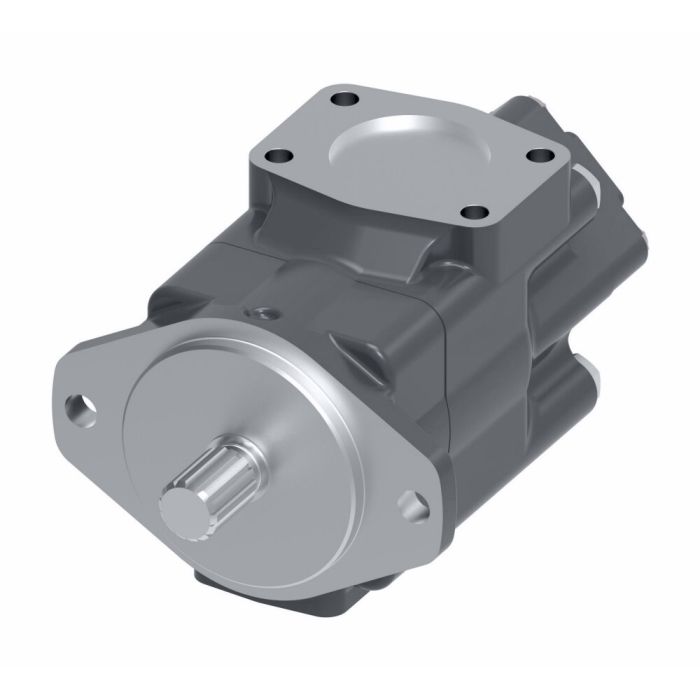

VICKERS 3520V38A14 1BB22R

Ask A Question

Description & Features

Crafted from robust cast iron and featuring a Buna-N seal, the Vickers 3520V38A14 1BB22R vane pump is designed for optimal performance in demanding industrial applications. Its innovative intra-vane cartridge design significantly reduces noise while ensuring excellent volumetric efficiency. This pump is ideal for use in diverse sectors such as plastics machinery, press machines, die casting, machine tools, primary metal processing, pulp and paper, wood processing, oil and gas, marine, and general industrial settings.

The Vickers vane pump's construction and design make it a reliable choice for heavy-duty applications, providing durability and consistent delivery of hydraulic power. As part of the Vickers by Danfoss/Eaton V Series, it stands out for its precision engineering and quality. The pump's wide range of applications affirms its versatility and reliability in various industrial environments.

SKU: 02-137288-2

Supplier Part Number (MPN): 02-137288-2

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.05 in L x 8.38 in W x 6.4 in H
Displacement
7.4 cu-in Shaft, 2.8 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
38 gpm Shaft, 14 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CCW From Inlet, Outlet 2: 45 deg CCW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Rod E on Oct 6, 2025, 9:16 AM
Reckon this pump would hold up okay in a plastics plant environment, with all the heat and whatnot?
Answer by: Customer Support on Oct 7, 2025, 11:45 AM
Built from cast iron and featuring a Buna-N seal, this Vickers vane pump is designed for durability in demanding industrial settings, including plastics machinery applications.
