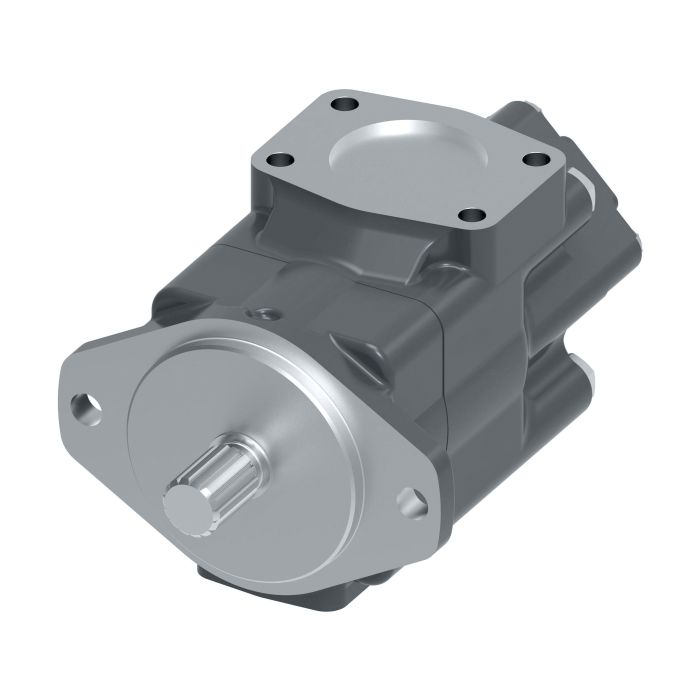

main product photo

VICKERS 3520V38A14-1CC22R

Ask A Question

Description & Features

The Vickers 3520V38A14-1CC22R vane pump is suitable for a range of demanding applications, including plastics machinery, press machines, die casting equipment, machine tools and test equipment.

This Vickers vane pump also performs well in primary metal production, pulp and paper processing, wood processing, oil and gas use, marine applications, and general industrial settings. Features include an innovative intra-vane cartridge design and noise reduction, along with excellent volumetric efficiency. It is constructed of durable cast iron and utilizes Buna-N seals.

SKU: 02-137288-3

Supplier Part Number (MPN): 02-137288-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.05 in L x 8.38 in W x 6.4 in H
Displacement
7.4 cu-in Shaft, 2.8 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
38 gpm Shaft, 14 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
3/4 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Eddie T on Feb 11, 2026, 7:12 PM
Will this pump hold up okay in a woodworking shop environment, what with all the sawdust floating around?
Answer by: Customer Support on Feb 13, 2026, 1:27 PM
This vane pump is constructed of durable cast iron, so it should be able to withstand the rigors of a woodworking shop.
