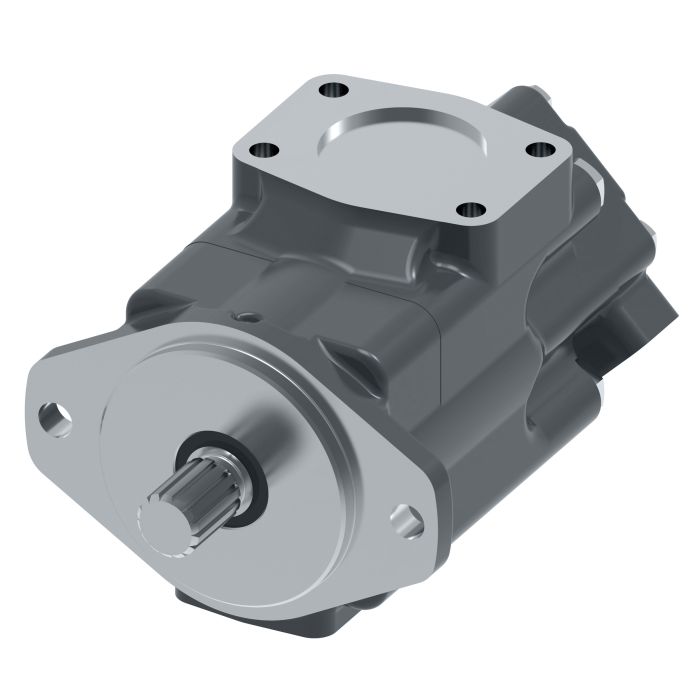

VICKERS 3520V38A14-86CC22R

Description & Features

Engineered for demanding applications such as oil and gas, metal cutting, and plastic injection molding, the VICKERS 3520V38A14-86CC22R Vane Pump offers exceptional performance and reliability. This pump boasts an innovative intra-vane cartridge design that effectively reduces noise while ensuring excellent volumetric efficiency. Constructed from robust cast iron, it is built to withstand harsh industrial environments.

With a flow rate of 121.23 liters per minute, the VICKERS 3520V38A14-86CC22R is well-suited for use in heavy-duty machinery like dump trucks and wheel loaders. The pump features Buna-N seals for enhanced durability and leak prevention under high-pressure conditions. As part of the VHO series, it represents the quality and innovation associated with the Vickers brand by Danfoss / Eaton.

SKU: 02-137289-3

Supplier Part Number (MPN): 02-137289-3

Specifications

Brand Vickers by Danfoss	Cartridge Type 22 Design	Dimensions 14.9 in L x 10.44 in W x 8.4 in H	Displacement 7.4 cu-in Shaft, 2.8 cu-in Cover	Drive Shaft Type Keyed	Flow Rate 38 gpm Shaft, 14 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2500 psi	Mounting Type Flanged	Outlet Post From CVR End Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet	Outlet Size 3/4 in, 1-1/4 in	Outlet Type Threaded	Port Connection Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged	Rotation Direction Clockwise	Seal Material Buna-N	Seal Type Standard	Series 3520 Series	Vane Type Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Earl W on Jun 11, 2025, 6:11 PM

Is this cast iron durable enough for a metal cutting environment?

Answer by: Customer Support on Jun 13, 2025, 6:25 AM

Given its robust cast iron construction, this Vickers vane pump is designed to hold up well even in harsh industrial environments like metal cutting.

Question by: Kent C on Dec 24, 2025, 2:21 PM

pump puts out enough flow for running two cylinders on a wheel loader at the same time or is 121 liters a minute just for single circuit work?

Answer by: Customer Support on Dec 26, 2025, 6:18 AM

At 121.23 liters per minute, that flow rate is the total output of the pump itself, not split by circuit count. Whether that's enough to run two cylinders simultaneously depends on the flow demand of each cylinder and how your hydraulic circuit is configured. The pump delivers that volume from a single pressure outlet, so circuit design and valve sizing are what determine how flow gets distributed downstream.
