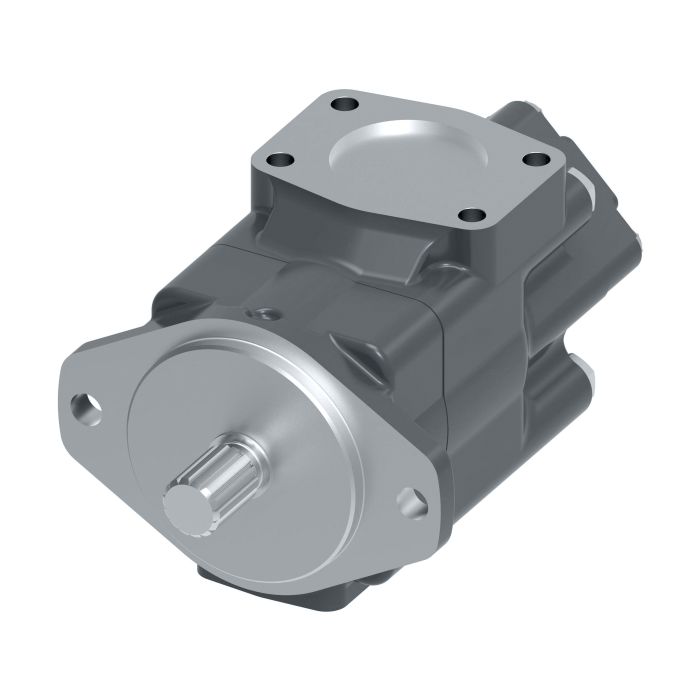

VICKERS 3525V25A12-86CC22R

Ask A Question

Description & Features

Crafted from robust cast iron, the Vickers 3525V25A12-86CC22R vane pump is designed for high-performance in demanding industrial settings. It features an innovative intra-vane cartridge design that minimizes noise and enhances volumetric efficiency, making it a reliable choice for use requiring consistent hydraulic power. The pump is versatile, serving applications in plastics machinery, die casting, machine tools, and more, including marine and oil & gas industries.

With Buna-N seals ensuring durability and leak prevention, this Vickers pump is well-suited for challenging environments. Its compact design, measuring 8.38 inches in width, allows for efficient integration into various systems. As part of the Vickers V Series, this pump maintains a reputation for quality and reliability. Whether used in primary metal processing or pulp and paper industries, its performance is both consistent and dependable.

SKU: 02-137297-3

Supplier Part Number (MPN): 02-137297-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
14.065 in L x 8.38 in W x 8.43 in H
Displacement
4.9 cu-in Shaft, 2.5 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
25 gpm Shaft, 12 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
1 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3525 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Hugh S on Sep 11, 2025, 6:50 PM
What kind of industries is this pump actually built for? Got a press machine setup and trying to figure out if it fits the bill.
Answer by: Customer Support on Sep 13, 2025, 6:14 AM
Press machine use is right in the wheelhouse for this pump. The 3525V25A12-86CC22R covers a pretty wide range of applications including plastics machinery, die casting, machine tools, test equipment, primary metal processing, pulp and paper, wood processing, oil and gas, and marine use. Cast iron construction keeps it tough enough for the kind of demanding cycles you'd see in a press environment, and the Buna-N seals help hold up against leaks over time.
Question by: Lee L on Aug 30, 2025, 7:51 PM
What kind of environments can this pump handle, and are there any seal options for different fluids?
Answer by: Customer Support on Sep 1, 2025, 6:39 AM
Buna-N seals come standard, so it's well-suited for challenging environments and leak prevention. It's used in a variety of applications from plastics machinery to oil and gas.
