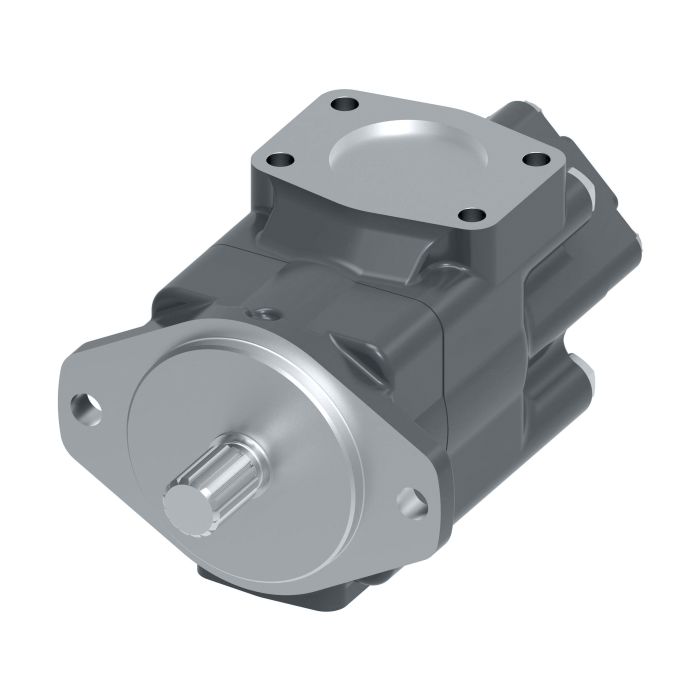

main product photo

VICKERS 3525V25A17-86CC22R

Ask A Question

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers 3525V25A17-86CC22R is a double vane pump built on the proven 3525V series platform. Its intra-vane cartridge design contributes to reduced operating noise and consistent volumetric efficiency across a broad range of duty cycles. The cast iron housing provides structural durability, while Buna-N seals offer reliable fluid compatibility in standard hydraulic fluid environments.

This pump is suited for a wide range of industrial applications, including press machines, die casting equipment, machine tools, plastics machinery, and test equipment. It is also used in primary metal processing, pulp and paper, wood processing, oil and gas, marine, and general industrial hydraulic systems. Manufactured under the Vickers brand by Danfoss/Eaton, it fits within a well-established product family with broad parts availability and application support.

SKU: 02-137302-3

Supplier Part Number (MPN): 02-137302-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
14.065 in L x 8.38 in W x 8.43 in H
Displacement
4.9 cu-in Shaft, 3.4 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
25 gpm Shaft, 17 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Size
1 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3525 Series
Special Feature Suffix
Pump with 38 gpm VQ Cam Ring (-20) Assy 629336 Obsolete
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Daryl B on May 6, 2025, 5:44 PM
what kind of machines is this pump actually used on? trying to figure out if it fits our setup before we pull the trigger on ordering
Answer by: Customer Support on May 8, 2025, 8:54 AM
Pretty broad range of applications, honestly. These pumps get used on press machines, die casting equipment, machine tools, and plastics machinery. You'll also find them running in pulp and paper use, wood processing lines, oil and gas systems, and marine hydraulic setups. General industrial circuits are fair game too. If your equipment falls into any of those categories, this pump is well within its intended use.
Question by: Ralph C on Mar 12, 2026, 4:31 PM
Will this work okay with standard hydraulic fluid?
Answer by: Customer Support on Mar 14, 2026, 7:19 AM
Buna-N seals are compatible with standard hydraulic fluids, so you shouldn't have any issues there.
