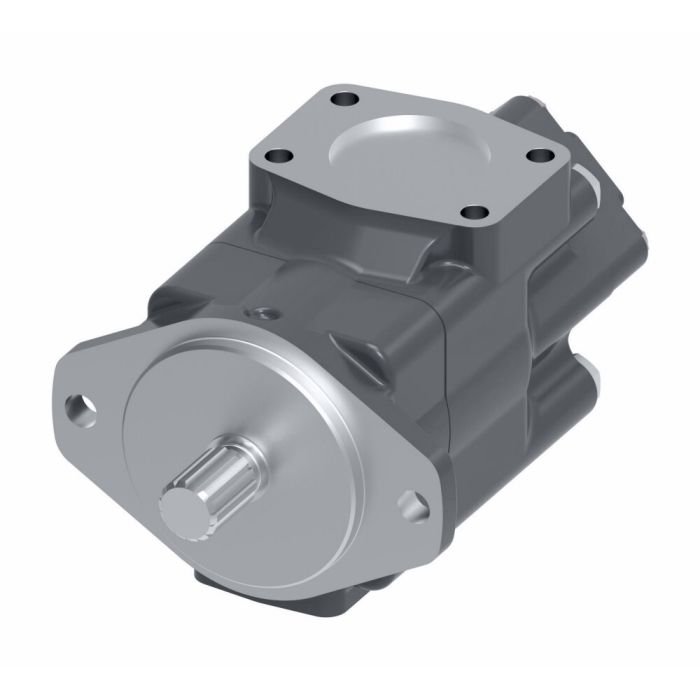

VICKERS 3525V25A21 1CC22L

Ask A Question

Description & Features

The Vickers 3525V25A21 1CC22L vane pump is suitable for applications including plastics machinery, press machines, die casting, machine tools, test equipment, primary metal, pulp and paper, wood processing, oil and gas, marine, and general industrial applications.

This Vickers vane pump features an innovative intra-vane cartridge design that reduces noise and provides excellent volumetric efficiency. Constructed from durable cast iron with Buna-N seals, this unit is part of the 3525V series. Width: 8.38 inches.

SKU: 02-137303-7

Supplier Part Number (MPN): 02-137303-7

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
14.065 in L x 8.38 in W x 8.43 in H
Displacement
4.9 cu-in Shaft, 4.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
25 gpm Shaft, 21 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Size
1 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3525 Series
Special Feature Suffix
Pump with 38 gpm VQ Cam Ring (-20) Assy 629336 Obsolete
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Jerry B on Nov 3, 2025, 3:51 PM
Running a press machine and we been looking at vane pumps to cut down on noise in the shop. This one got that intra-vane setup, but does it actually make a real difference or is that just marketing talk?
Answer by: Customer Support on Nov 5, 2025, 6:11 AM
The intra-vane cartridge design on this pump does more than just sound good on paper. It changes how the vanes load and seat during operation, which genuinely reduces the mechanical noise that older vane pump designs tend to produce. For a press machine environment where operators are nearby all shift long, that kind of noise reduction adds up. It also helps maintain volumetric efficiency, meaning you get more consistent flow without the pump working harder than it needs to.
Question by: Lyle M on Jan 27, 2026, 5:27 PM
Is this pump meant for continuous duty, or is it more for intermittent use on something like a press?
Answer by: Customer Support on Jan 29, 2026, 8:57 AM
Application-wise, this Vickers vane pump handles plastics machinery, presses, die casting, machine tools, test equipment, primary metal, pulp and paper, wood processing, oil and gas, marine, and general industrial applications.
