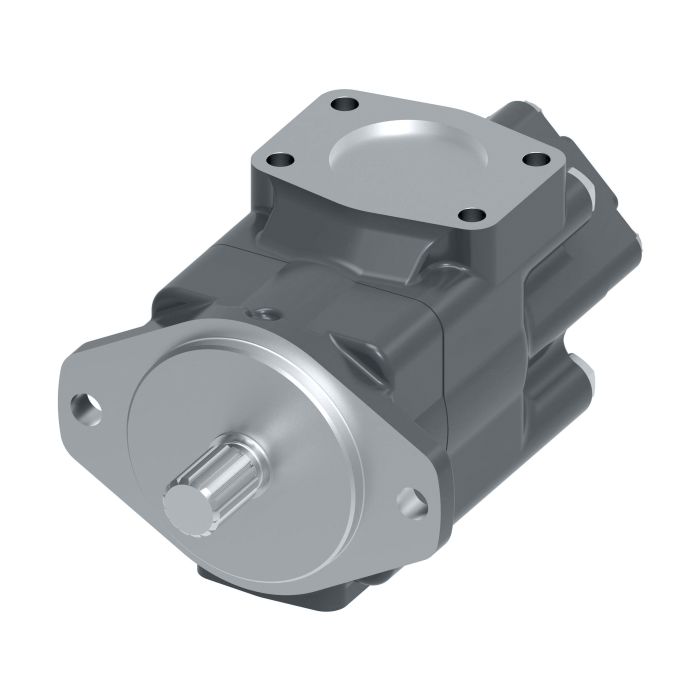

main product photo

VICKERS 3525V30A17-1CC22R

Ask A Question

Description & Features

Ideal for demanding industrial applications, including plastics machinery, die casting, and marine environments, the VICKERS 3525V30A17-1CC22R vane pump is designed for efficiency and reliability. Its innovative intra-vane cartridge design minimizes noise, ensuring smoother use. With a robust cast iron construction, this vane pump delivers impressive volumetric efficiency, handling flow rates up to 121.23 liters per minute. The Vickers reputation for quality is evident in every aspect of this product, making it a trusted choice for machine tools and test equipment.

SKU: 02-137310-3

Supplier Part Number (MPN): 02-137310-3

Alternate Part Numbers: 3525V30A171CC22R

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
14.065 in L x 8.38 in W x 8.43 in H
Displacement
5.9 cu-in Shaft, 3.4 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
30 gpm Shaft, 17 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Size
1 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Segment Code
A
Series
3525 Series
Special Feature Suffix
Pump with 38 gpm VQ Cam Ring (-20) Assy 629336 Obsolete
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Eddie W on Mar 18, 2026, 3:18 PM
How noisy is this thing when it's running? I'm trying to keep the shop a little quieter.
Answer by: Customer Support on Mar 20, 2026, 1:47 PM
Its innovative intra-vane cartridge design is specifically engineered to minimize noise during operation, which should help keep the shop quieter.
Question by: Hank M on Mar 22, 2026, 10:28 AM
Flow rate on this one is listed at 121 liters a minute -- is that what you'd actually expect to see running it in a plastics machinery setup, or is that more of a peak figure?
Answer by: Customer Support on Mar 24, 2026, 6:11 AM
For plastics machinery, that 121.23 liters per minute is the rated flow for this pump under standard operating conditions. Vickers built the 3525V series with excellent volumetric efficiency, so real-world performance in that kind of application tends to stay close to the rated figure rather than dropping off significantly. The cast iron construction holds up well in the continuous duty cycles plastics equipment typically demands, so you're not looking at a pump that's going to bleed off a lot of flow through internal leakage over time.
