VICKERS-3525V30A17 1DC22L

Ask A Question

Description & Features

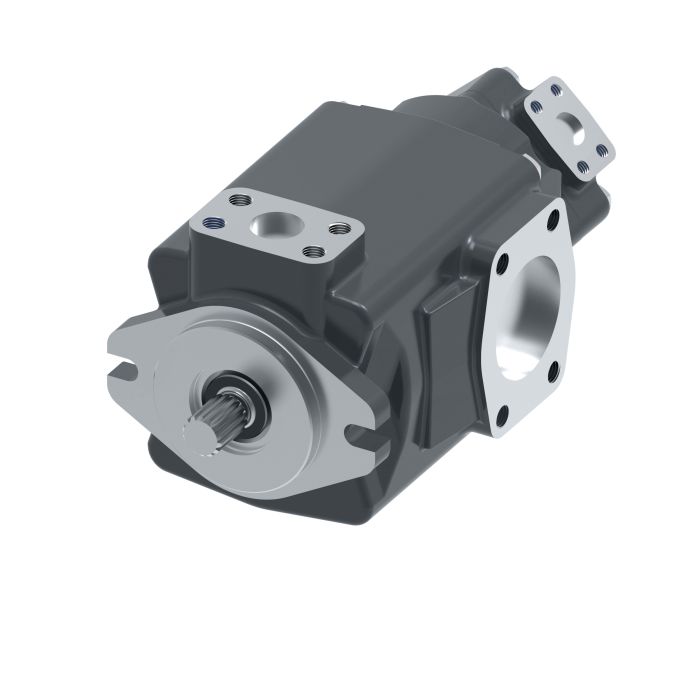

Designed for demanding industrial environments, the VICKERS-3525V30A17 1DC22L is a double vane pump from the Vickers V Series, manufactured under the Vickers brand by Danfoss/Eaton. Built with a cast iron body and Buna-N seals, it is engineered for durability across a wide range of hydraulic system applications.

The 3525V series incorporates an innovative intra-vane cartridge design that reduces operating noise while maintaining excellent volumetric efficiency, a combination well-suited to cycle-intensive applications. This pump serves a broad range of industries, including plastics machinery, press and die casting equipment, machine tools, test equipment, primary metal processing, pulp and paper, wood processing, oil and gas, marine, and general industrial use.

SKU: 02-137310-Z

Supplier Part Number (MPN): 02-137310-Z

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
14.065 in L x 8.38 in W x 8.43 in H
Displacement
5.9 cu-in Shaft, 3.4 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
30 gpm Shaft, 17 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Size
1 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3525 Series
Special Feature Suffix
Pump with 38 gpm VQ Cam Ring (-20) Assy 629336 Obsolete
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Freddie H on Jan 2, 2026, 2:43 PM
Been running vane pumps on our press equipment for years and noise has always been a headache. Does the design on this one actually do anything to bring that down, or is that just marketing talk?
Answer by: Customer Support on Jan 4, 2026, 6:17 AM
The intra-vane cartridge design in the 3525V series genuinely addresses noise as a core engineering goal, not just a selling point. That cartridge configuration keeps the vanes loaded more consistently through rotation, which cuts down on the slap and chatter you get with conventional vane pump designs. For cycle-intensive press applications specifically, that adds up to a noticeable difference over a full shift.
