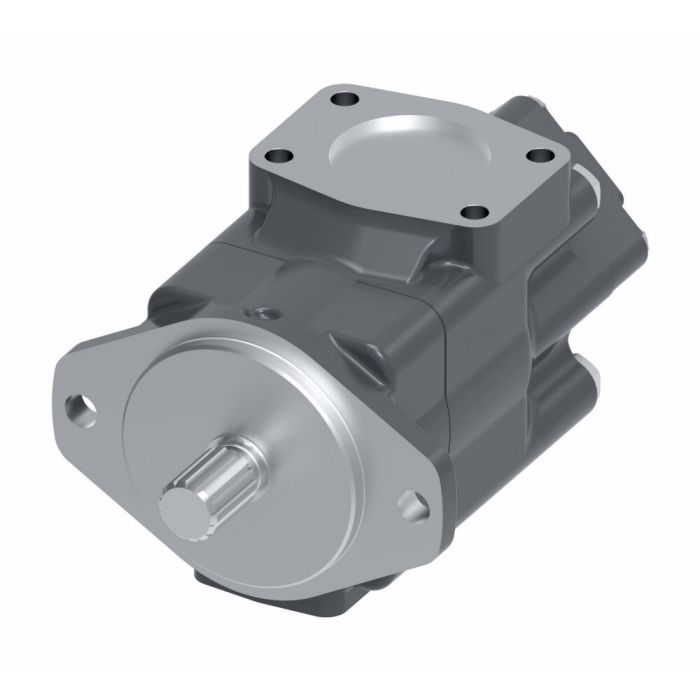

VICKERS 3525V30A21 86CC22L

Ask A Question

Description & Features

Designed for demanding industrial fluid power applications, the Vickers 3525V30A21 86CC22L is a double vane pump from the Vickers V Series, manufactured in cast iron for durability in continuous-duty service. The 3525V series configuration combines two pumping sections in a single unit, making it well suited for systems that require multiple flow circuits or staged pressure delivery.

An innovative intra-vane cartridge design contributes to reduced operating noise and strong volumetric efficiency across a broad range of conditions. Buna-N seals provide reliable fluid compatibility in standard hydraulic applications. This pump is used across a wide range of industries including plastics machinery, press and die casting equipment, machine tools, test equipment, primary metals, pulp and paper, wood processing, oil and gas, and marine environments.

SKU: 02-137315-7

Supplier Part Number (MPN): 02-137315-7

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
14.065 in L x 8.38 in W x 8.43 in H
Displacement
5.9 cu-in Shaft, 4.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
30 gpm Shaft, 21 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Size
1 in, 1-1/4 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Seal Type
Standard
Series
3525 Series
Special Feature Suffix
Pump with 38 gpm VQ Cam Ring (-20) Assy 629336 Obsolete
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Joyce B on Dec 23, 2025, 7:14 PM
We run a press machine pretty much around the clock and need something that won't quit on us, been burning through pumps faster than we'd like. Is this Vickers unit built for that kind of continuous duty?
Answer by: Customer Support on Dec 25, 2025, 7:41 AM
Cast iron construction is what sets this one apart for heavy continuous use. The 3525V series is a double vane pump, meaning two pumping sections built into a single unit, which makes it a solid fit for demanding press applications where the system runs all day. The intra-vane cartridge design also helps keep noise down and holds volumetric efficiency steady over time, which matters a lot when you're running non-stop. Press machinery is one of the primary listed applications for this pump, so it's built with that kind of workload in mind.
