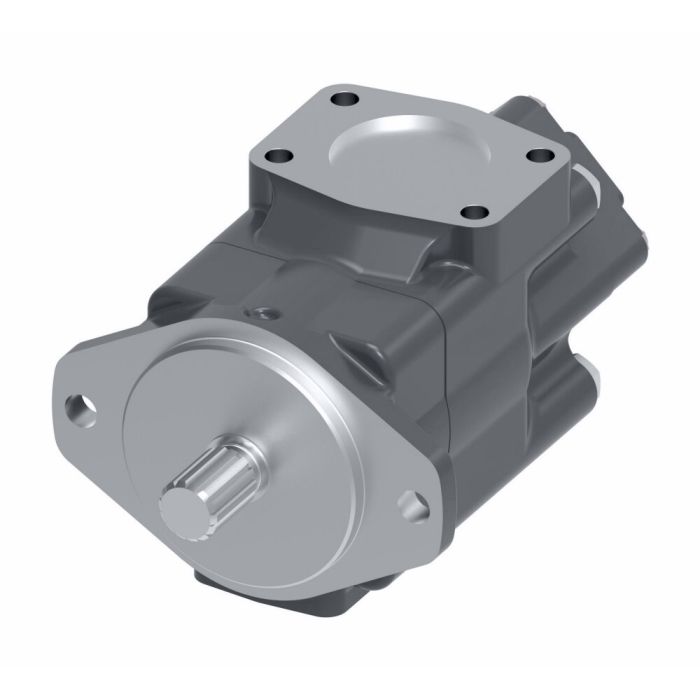

VICKERS 4520V42A14 1CA22R

Ask A Question

Description & Features

Designed for demanding industrial hydraulic systems, the Vickers 4520V42A14 1CA22R is a double vane pump built on the proven V Series platform from Vickers by Danfoss/Eaton. Its innovative intra-vane cartridge design contributes to reduced noise levels and excellent volumetric efficiency, qualities that matter in high-cycle industrial environments.

Constructed from cast iron, this pump delivers a flow rate of approximately 121.2 litres per minute and is well suited to a broad range of applications including machine tools, press machines, die casting, plastics machinery, test equipment, primary metal processing, pulp and paper, wood processing, oil and gas, and marine service. The 4520V series is a reliable choice where consistent flow output and long service life are required across varied duty cycles.

SKU: 02-137371-N

Supplier Part Number (MPN): 02-137371-N

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.89 in L x 8.38 in W x 7.34 in H
Displacement
8.4 cu-in Shaft, 2.8 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
42 gpm Shaft, 14 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: 135 deg CCW From Inlet
Outlet Size
3/4 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Joyce R on Jul 1, 2025, 9:41 AM
Got a press machine running hard most of the day and I need something that ain't gonna drop off on flow volume. What kind of output does this pump put out?
Answer by: Customer Support on Jul 3, 2025, 6:07 AM
Running at its rated capacity, this unit delivers right around 121.2 litres per minute. For a press machine running heavy duty cycles, that's a solid flow rate and the cast iron build is well suited to the kind of sustained demand that comes with that type of work. The 4520V series was put together for exactly these high-cycle industrial environments, so consistent output over long shifts is what it's built around.
