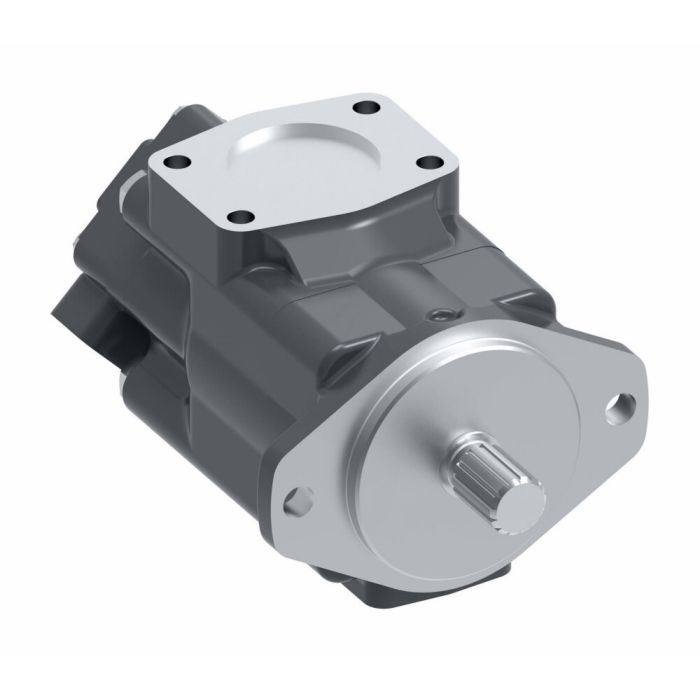

main product photo

VICKERS 4525V50A21 1BB22R

Ask A Question

Description & Features

Built on an innovative intra-vane cartridge design, this cast iron vane pump delivers reduced noise levels and strong volumetric efficiency across demanding industrial applications. The VICKERS 4525V50A21 1BB22R belongs to the 4525V Series and features Buna-N seals, making it well suited for use with common hydraulic fluids in a wide range of service environments.

Typical applications include press machines, die casting equipment, machine tools, plastics machinery, and test equipment, as well as primary metal processing, pulp and paper, wood processing, oil and gas, and marine installations. The cast iron housing supports durability in high-cycle industrial settings.

Manufactured under the Vickers brand by Danfoss/Eaton, this pump carries a product width of 8.38 inches and is offered with no special features beyond its standard intra-vane cartridge configuration.

SKU: 02-137435-2

Supplier Part Number (MPN): 02-137435-2

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
16.74 in L x 8.38 in W x 7.34 in H
Displacement
9.9 cu-in Shaft, 4.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
50 gpm Shaft, 21 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CCW From Inlet, Outlet 2: 45 deg CCW From Inlet
Outlet Size
1 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4525 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Cody P on Nov 30, 2025, 6:09 PM
pump's made of cast iron and got buna-n seals -- would it hold up running hydraulic fluid in a die casting setup day in and day out?
Answer by: Customer Support on Dec 2, 2025, 5:44 PM
Cast iron housing handles the heat and mechanical stress that die casting environments throw at it pretty well. Buna-N seals are a solid match for standard hydraulic fluids, so you're not going to have compatibility problems there. Die casting is actually one of the listed applications for this pump, so it's built with exactly that kind of demanding, high-cycle use in mind.
Question by: Rhonda M on Oct 20, 2025, 5:53 PM
Reckon this'll hold up okay in a plastics plant, what with all the cycling and whatnot?
Answer by: Customer Support on Oct 22, 2025, 6:29 AM
It's built with a cast iron housing, so it's durable enough for high-cycle industrial jobs like you'd find in plastics machinery.
