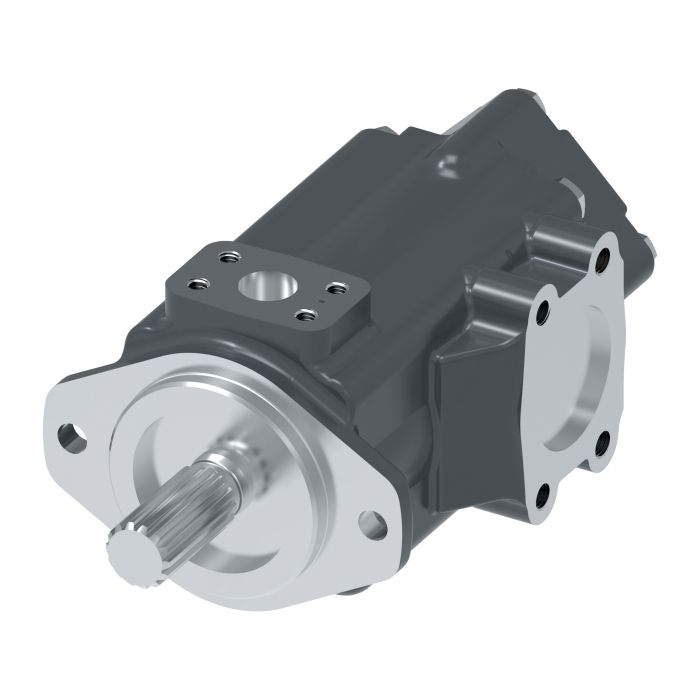

VICKERS 4525V60A17 1DA22R

Ask A Question

Description & Features

The VICKERS 4525V60A17 1DA22R is a vane pump designed for demanding applications in plastics machinery, press machines, die casting equipment, machine tools, and test equipment. It's also suitable for primary metal, pulp & paper, wood processing, oil & gas, marine, and general industrial uses.

This Vickers vane pump features an innovative intra-vane cartridge design that reduces noise and provides excellent volumetric efficiency. Constructed from durable cast iron with Buna-N seals, its flow rate is 121.23 liters per minute and its product width is 8.38 inches.

SKU: 02-137443-U

Supplier Part Number (MPN): 02-137443-U

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
16.74 in L x 8.38 in W x 7.34 in H
Displacement
11.8 cu-in Shaft, 3.4 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
60 gpm Shaft, 17 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CW From Inlet, Outlet 2: 135 deg CCW From Inlet
Outlet Size
1 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4525 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Janet C on Mar 25, 2026, 1:18 PM
Running a press machine that eats pumps alive, would this Vickers unit hold up to that kind of punishment, and what's it actually built out of?
Answer by: Customer Support on Mar 27, 2026, 8:27 AM
Cast iron housing with Buna-N seals means it's built to take real industrial abuse, not just light-duty shop work. Press machine applications are right in its wheelhouse. The 4525V series was developed specifically for demanding environments like that, so it's not going to be the weak link in your setup.
Question by: Kent C on Dec 29, 2025, 10:21 AM
Reckon this pump'll hold up in a plastics factory environment?
Answer by: Customer Support on Dec 30, 2025, 4:06 PM
Designed for demanding applications, the 4525V60A17 1DA22R is often used in plastics machinery, so it should be well-suited for that type of environment.
