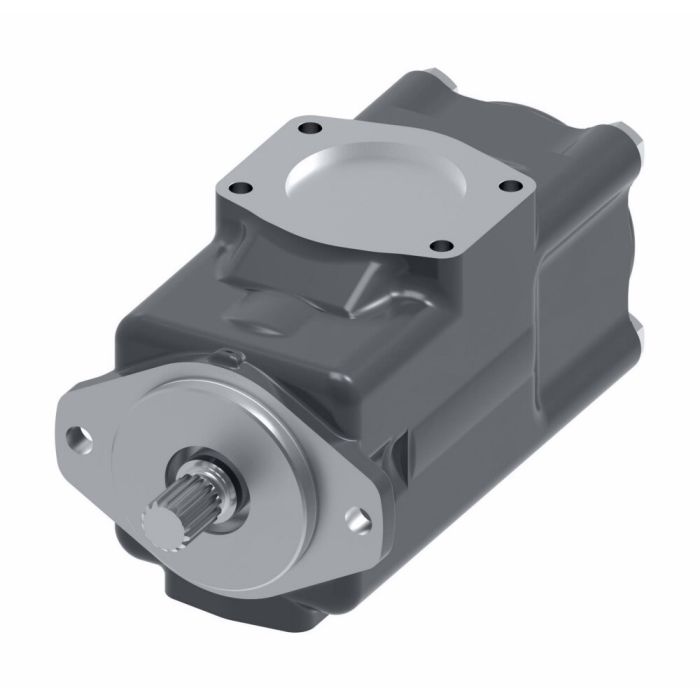

VICKERS 4525V60A21 1CC22R

Description & Features

Designed for demanding industrial applications, the Vickers 4525V60A21 1CC22R is a cast iron vane pump from the Vickers V Series, offering a flow rate of approximately 121.2 litres per minute. Its intra-vane cartridge design contributes to reduced noise levels and excellent volumetric efficiency, making it well-suited for high-cycle environments where consistent performance matters.

Built with Buna-N seals and constructed from cast iron, this pump is compatible with a range of hydraulic fluid applications. Typical end-use sectors include oil and gas, metal cutting, dump truck and wheel loader equipment, and plastic injection molding. The pump is part of the Vho series and carries no special feature restrictions, offering straightforward integration into standard hydraulic circuits.

SKU: 02-137445-3

Supplier Part Number (MPN): 02-137445-3

Alternate Part Numbers: C1ER95

Specifications

Brand Vickers by Danfoss	Cartridge Type 22 Design	Dimensions 15.93 in L x 10.44 in W x 8.5 in H	Displacement 11.8 cu-in Shaft, 4.1 cu-in Cover	Drive Shaft Type Square Keyed	Flow Rate 60 gpm Shaft, 21 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2500 psi	Mounting Type Flanged	nmfc 77.50	Outlet Post From CVR End Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet	Outlet Size 1 in, 1-1/2 in	Outlet Type Threaded	Rotation Direction Clockwise	Seal Material Buna-N	Seal Type Standard	Segment Code B	Series 4525 Series	Vane Type Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Warren R on Nov 18, 2025, 12:18 PM

Reckon this'll fit right on my old rig without too much fuss?

Answer by: Customer Support on Nov 19, 2025, 12:50 PM

This Vickers V Series vane pump is designed for straightforward integration into standard hydraulic circuits, so it should fit without extensive modifications, assuming your system matches standard hydraulic setups.

Question by: Phil M on Oct 25, 2025, 6:05 PM

flow rate on this one is listed around 121 liters per minute -- that accurate for what i'd be running on a plastic injection molding setup?

Answer by: Customer Support on Oct 27, 2025, 6:47 AM

For plastic injection molding, that flow rate holds up well. At roughly 121.2 litres per minute, the 4525V60A21 1CC22R moves enough volume to keep up with the kind of continuous hydraulic demand those machines put on a pump. The cast iron construction and intra-vane cartridge design both work in your favor in that setting, where high cycle counts and consistent output are pretty much the standard expectation.
