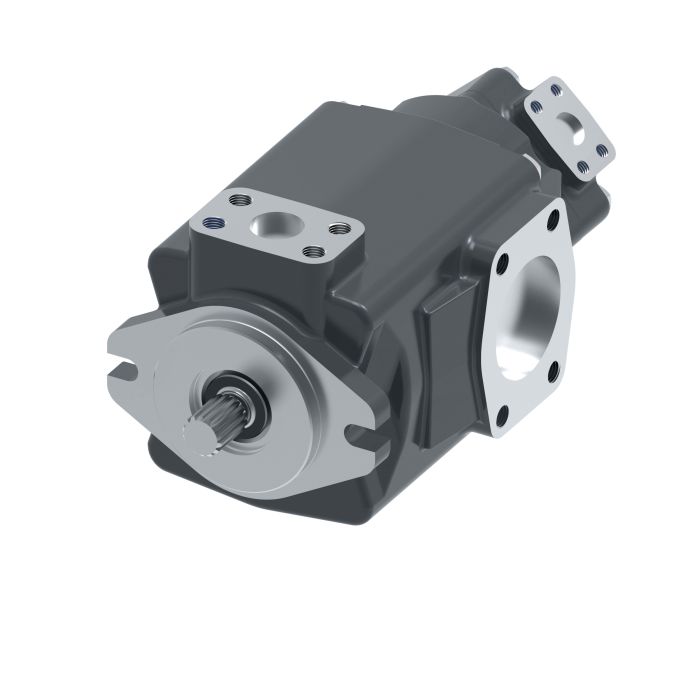

VICKERS 4525V60A21 1DC22R

Ask A Question

Description & Features

The Vickers 4525V60A21 1DC22R vane pump is suitable for applications including plastics machinery, press machines, die casting, machine tools, test equipment, primary metal, pulp & paper, wood processing, oil & gas, marine, and general industrial uses.

This Vickers vane pump features an innovative intra-vane cartridge design that reduces noise and provides excellent volumetric efficiency. The pump is constructed of durable cast iron and utilizes Buna-N seals.

SKU: 02-137445-W

Supplier Part Number (MPN): 02-137445-W

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
16.74 in L x 8.38 in W x 7.34 in H
Displacement
11.8 cu-in Shaft, 4.1 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
60 gpm Shaft, 21 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
nmfc
77.50
Outlet Post From CVR End
Outlet 1: 90 deg CW From Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
1 in, 1-1/2 in
Outlet Type
Threaded
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Segment Code
B
Series
4525 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Judy M on Oct 31, 2025, 3:31 PM
what all industries is this pump actually built for? got a wood processing operation and trying to figure out if it fits what we're running
Answer by: Customer Support on Nov 2, 2025, 6:41 AM
Wood processing is one of the listed applications for this pump, along with plastics machinery, press machines, die casting, machine tools, test equipment, primary metal, pulp and paper, oil and gas, marine, and general industrial use. It covers a pretty wide range, so wood processing use fall right in line with what it was put together to handle.
