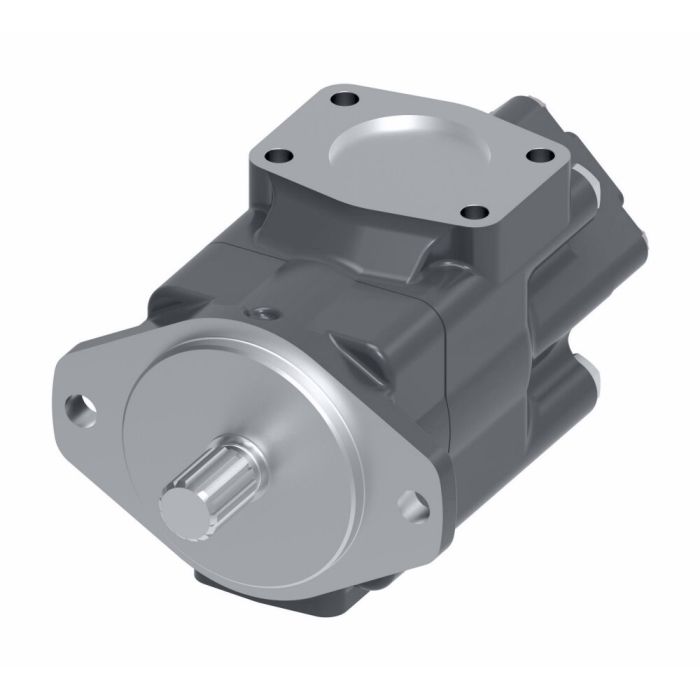

VICKERS 4525V60A21 11BB22R

Ask A Question

Description & Features

The Vickers 4525V60A21 11BB22R vane pump is suitable for a variety of applications, including plastics machinery, press machines, die casting, and machine tools.

This Vickers vane pump features an innovative intra-vane cartridge design that reduces noise and provides excellent volumetric efficiency. Constructed of cast iron, it is also suitable for test equipment, primary metal, pulp and paper, wood processing, oil and gas, marine, and general industrial applications. It has a flow rate of 121.23383808 liters per minute and a width of 8.38 inches.

SKU: 02-137446-2

Supplier Part Number (MPN): 02-137446-2

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.74 in L x 8.38 in W x 7.34 in H
Displacement
11.8 cu-in Shaft, 4.1 cu-in Cover
Drive Shaft Type
11 to 14 Teeth Splined
Flow Rate
60 gpm Shaft, 21 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: 90 deg CCW From Inlet, Outlet 2: 45 deg CCW From Inlet
Outlet Size
1 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4525 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Neal J on Aug 20, 2025, 6:45 PM
What all can this vane pump be used on? Got a press machine and a couple machine tool setups and trying to figure out if one pump could work across both.
Answer by: Customer Support on Aug 22, 2025, 6:00 AM
Press machines and machine tools are both right in the wheelhouse for this pump. The 4525V60A21 11BB22R also covers plastics machinery, die casting, test equipment, wood processing, pulp and paper, oil and gas, marine setups, and general industrial use. Cast iron construction makes it a solid fit for heavy-duty environments, so running it across multiple application types in a shop setting is exactly what it was built for.
Question by: Gene T on Jan 3, 2026, 1:59 PM
Is this here 4525V60A21 model gonna drop right in to replace my old Vickers pump, or do I need to watch out for somethin'?
Answer by: Customer Support on Jan 5, 2026, 1:00 PM
This V series vane pump is made to be used in machines like plastics manufacturing equipment, presses, and die casting setups, among others. Just make sure your flow rate needs match up.
