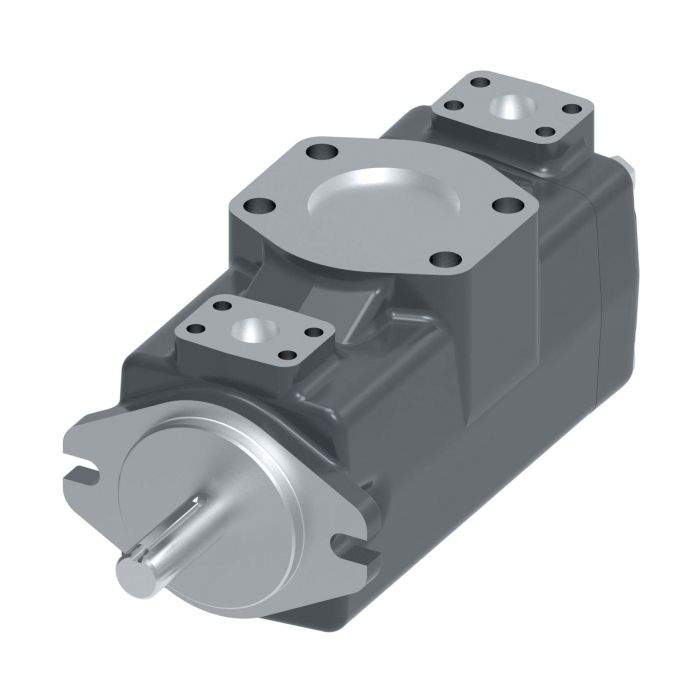

VICKERS 4535V42A25 86CC22R

Ask A Question

Description & Features

The VICKERS 4535V42A25 86CC22R vane pump is designed for demanding applications, including plastics machinery, press machines, die casting, and machine tools.

Constructed from durable cast iron with Buna-N seals, this Vickers pump features an innovative intra-vane cartridge design that reduces noise and provides excellent volumetric efficiency. This vane pump is also suitable for test equipment, primary metal, pulp & paper, wood processing, oil & gas, marine, and general industrial applications. Its flow rate is 121.23383808 litre per minute and its product width is 8.38.

SKU: 02-137457-3

Supplier Part Number (MPN): 02-137457-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
17.84 in L x 8.38 in W x 7.31 in H
Displacement
8.4 cu-in Shaft, 4.9 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
42 gpm Shaft, 25 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: Inline with Inlet
Outlet Size
1-1/4 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4535 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Dean H on Sep 23, 2025, 10:16 AM
what all industries is this pump actually built for? seen it listed a few places but never with a straight answer
Answer by: Customer Support on Sep 25, 2025, 6:04 AM
Quite a few, actually. The 4535V42A25 covers plastics machinery, press machines, die casting, machine tools, test equipment, primary metal use, pulp and paper, wood processing, oil and gas, marine, and general industrial use. That is a pretty broad range, which is part of what makes the V Series a go-to in a lot of shops and facilities.
Question by: Lynn B on Mar 1, 2026, 7:37 AM
What kind of machines does this Vickers pump work with? I got a plastics machine that's been giving me trouble.
Answer by: Customer Support on Mar 3, 2026, 6:08 AM
This vane pump is well-suited for plastics machinery, press machines, die casting, and machine tools, as well as other general industrial applications.
