VICKERS 4535V50A25 1AA22L

Ask A Question

Description & Features

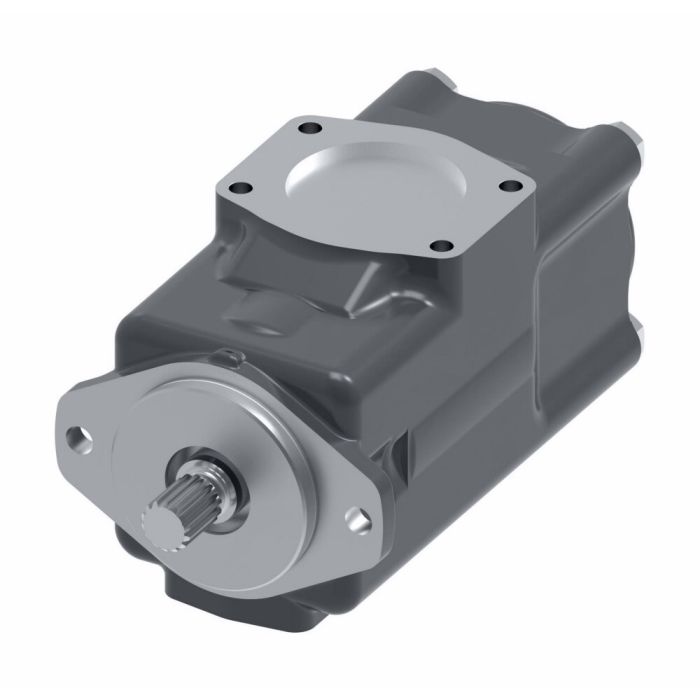

Experience reliable performance with the Vickers 4535V50A25 1AA22L, a vane pump engineered for demanding industrial environments. Crafted from durable cast iron and featuring an innovative intra-vane cartridge design, this pump excels in reducing noise while delivering excellent volumetric efficiency. It is ideal for applications in plastics machinery, press machines, die casting, machine tools, and more, supporting sectors such as primary metal, pulp and paper, and marine industries.

The Vickers 4535V Series is recognized for its robust design and the use of Buna-N seal material, ensuring dependable operation under various conditions. This pump is tailored for general industrial use, with a product width of 8.38 inches, making it a versatile choice for numerous hydraulic systems.

SKU: 02-137466-5

Supplier Part Number (MPN): 02-137466-5

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
17.84 in L x 8.38 in W x 7.31 in H
Displacement
9.9 cu-in Shaft, 4.9 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
50 gpm Shaft, 25 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Opposite Inlet, Outlet 2: Opposite Inlet
Outlet Size
1-1/4 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4535 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Brent C on May 9, 2025, 11:26 AM
what all industries is this pump built for? got a machine tool application and trying to figure out if it'll hold up
Answer by: Customer Support on May 10, 2025, 3:36 PM
Cast iron construction gives it the durability needed for hard use, and the 4535V series covers a pretty wide range of industries. Machine tools are right on the list, along with plastics machinery, press machines, die casting, pulp and paper, oil and gas, marine, and general industrial work. If your application falls into any of those categories, you're in the right ballpark.
