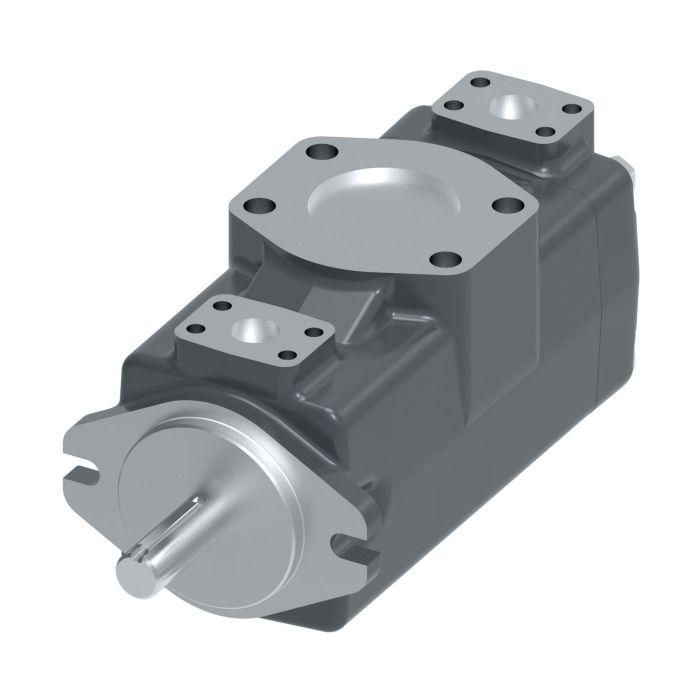

VICKERS 4535V60A38 1CC22L

Ask A Question

Description & Features

Engineered for demanding industrial applications, the Vickers 4535V60A38 1CC22L Vane Pump offers exceptional performance in environments such as plastics machinery, press machines, and die casting. Its innovative intra-vane cartridge design reduces noise and ensures excellent volumetric efficiency, making it suitable for primary metal, pulp & paper, and oil & gas sectors. With a substantial flow rate of 121.23 liters per minute, this pump is constructed from durable cast iron, ensuring long-lasting reliability.

Designed to meet the rigorous demands of marine and general industrial applications, this vane pump features Buna-N seals for enhanced compatibility and durability. The Vickers pump is part of the 4535V series, known for its robust construction and efficient operation.

SKU: 02-137483-7

Supplier Part Number (MPN): 02-137483-7

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
17.84 in L x 8.38 in W x 7.31 in H
Displacement
11.8 cu-in Shaft, 7.4 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
60 gpm Shaft, 38 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
nmfc
77.50
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: Inline with Inlet
Outlet Size
1-1/4 in, 1-1/2 in
Outlet Type
Threaded
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Seal Type
Standard
Segment Code
A
Series
4535 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Neil H on Jun 17, 2025, 6:59 PM
Y'all wouldn't happen to know if this thing can handle gettin' splashed with saltwater every now and then, would ya?
Answer by: Customer Support on Jun 19, 2025, 11:32 AM
Given its applications in marine environments and general industrial use, this Vickers vane pump is built to withstand some exposure. The Buna-N seals also help with compatibility in different environments.
Question by: Lee J on Apr 5, 2026, 4:35 PM
Running a press machine and need to know what kind of flow this pump puts out. 121 liters a minute sound right?
Answer by: Customer Support on Apr 7, 2026, 1:07 PM
Yeah, 121.23 liters per minute is the rated flow for this unit. For press machine work that's a solid output, and the 4535V series was built with exactly that kind of heavy industrial demand in mind. Cast iron construction keeps it from taking a beating over time, so it holds up well in those environments.
