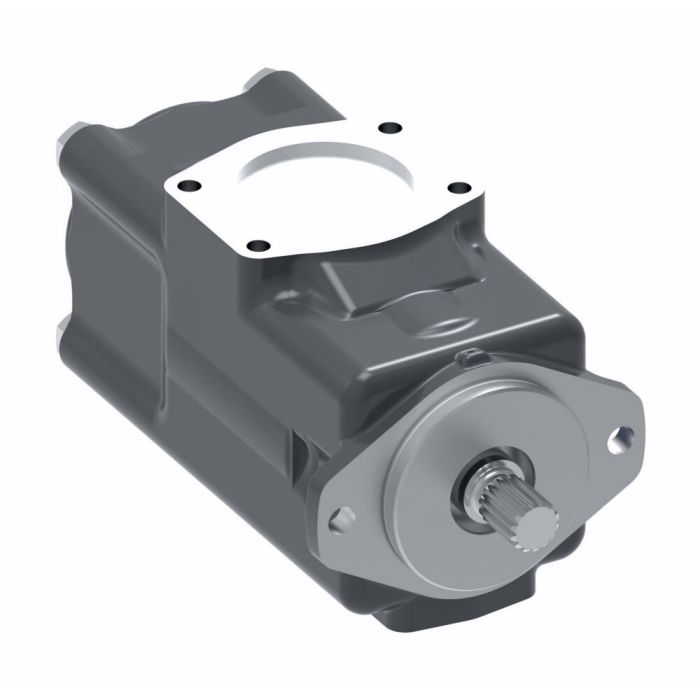

VICKERS 4535V60A38 11AA22R

Description & Features

Constructed from durable cast iron, the Vickers 4535V60A38 11AA22R vane pump is engineered to deliver exceptional performance in demanding industrial environments. Featuring an innovative intra-vane cartridge design, this pump reduces noise levels and enhances volumetric efficiency, making it an ideal choice for applications such as plastics machinery, die casting, and machine tools. The Buna-N seal material ensures reliable operation under various conditions, while the Vickers brand guarantees quality and dependability.

With a width of 8.38 inches, this versatile pump is suited for a wide range of industries, including marine, oil & gas, and pulp & paper. The V Series vane pumps are renowned for their robust construction and ability to handle challenging tasks in primary metal processing and wood processing. Designed to meet the needs of general industrial applications, this pump is a top-tier choice for those seeking efficiency and reliability.

SKU: 02-137484-1

Supplier Part Number (MPN): 02-137484-1

Alternate Part Numbers: 4535V60A3811AA22R

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
16.84 in L x 8.38 in W x 7.31 in H
Displacement
11.8 cu-in Shaft, 7.4 cu-in Cover
Drive Shaft Type
11 to 14 Teeth Splined
Flow Rate
60 gpm Shaft, 38 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
nmfc
77.50
Outlet Post From CVR End
Outlet 1: Opposite Inlet, Outlet 2: Opposite Inlet
Outlet Size
1-1/4 in, 1-1/2 in
Outlet Type
Threaded
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Segment Code
B
Series
4535 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Ray G on Sep 1, 2025, 4:28 PM
What kind of seal does this pump use, and is it gonna hold up in an oily environment?
Answer by: Customer Support on Sep 2, 2025, 7:11 PM
Buna-N is the seal material on this one. It handles oil-based fluids well and is a common choice for hydraulic systems running petroleum-based fluids. For general industrial and oil and gas applications like this pump is rated for, that seal material is a practical fit.
