VICKERS 4535V60A38 11AA22L

Ask A Question

Description & Features

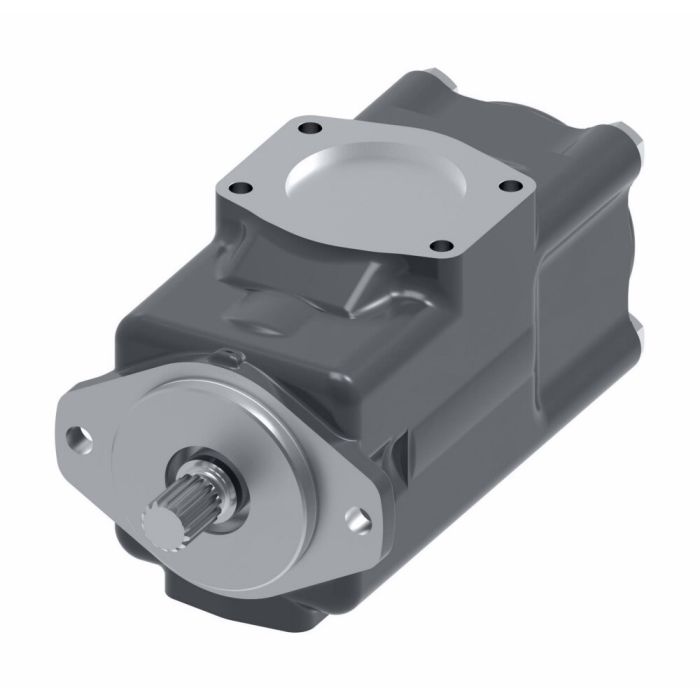

Built on Vickers' proven 4535V series platform, the VICKERS 4535V60A38 11AA22L is a double vane pump constructed from cast iron with Buna-N seals, suited for demanding industrial hydraulic circuits. Its intra-vane cartridge design contributes to reduced noise levels and strong volumetric efficiency across varying load conditions.

This pump is well suited to a broad range of industrial applications, including press machines, die casting, plastics machinery, machine tools, primary metal processing, pulp and paper, wood processing, oil and gas, marine systems, and general industrial use. The combination of cast iron construction and reliable seal materials supports consistent performance in environments where durability and fluid control are priorities.

SKU: 02-137484-5

Supplier Part Number (MPN): 02-137484-5

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
16.84 in L x 8.38 in W x 7.31 in H
Displacement
11.8 cu-in Shaft, 7.4 cu-in Cover
Drive Shaft Type
11 to 14 Teeth Splined
Flow Rate
60 gpm Shaft, 38 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Opposite Inlet, Outlet 2: Opposite Inlet
Outlet Size
1-1/4 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4535 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (2)

Question by: Neil H on Aug 13, 2025, 2:09 PM
what all industries is this pump used in? got a few different machines and trying to figure out if it'd cover more than one application
Answer by: Customer Support on Aug 15, 2025, 6:23 AM
Quite a few, actually. The 4535V60A38 covers press machines, die casting, plastics machinery, machine tools, primary metal processing, pulp and paper, wood processing, oil and gas, marine systems, and general industrial use. If you're running more than one type of equipment, there's a solid chance this pump fits more than one of your setups.
Question by: Brett F on Apr 2, 2026, 11:36 AM
Reckon this pump can hold up in a plastics plant environment, dealing with the usual grime and whatnot?
Answer by: Customer Support on Apr 4, 2026, 6:42 AM
Constructed from cast iron and using Buna-N seals, this Vickers vane pump is designed for durability and fluid control in demanding industrial environments like plastics machinery.
