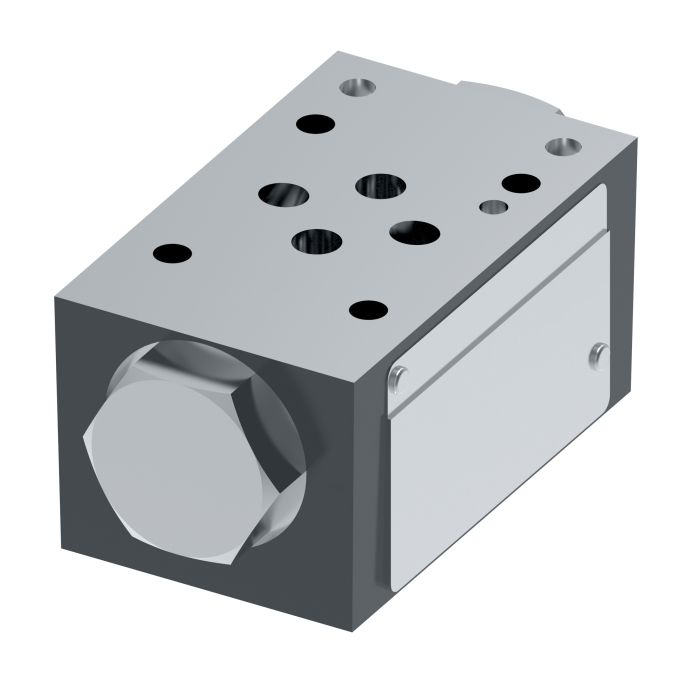

VICKERS DGMPC 3 DBAK 41

Description & Features

The Vickers DGMPC 3 DBAK 41 is a system stak valve designed for machine tool and multiple industrial applications.

These Vickers valves reduce installation costs, eliminate external leakage, and boost resistance to contamination. They feature a 60 liter per minute flow rate and Buna-N seals. This valve has a width of 1.

SKU: 02-137854

Supplier Part Number (MPN): 02-137854

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Body Material Iron	Decompression Feature 10:1 Decompression Ratio	Design Series 41 Series	Dimensions 3.82 in L x 1 in W x 1.57 in H	Domestic/Import Domestic	Function Check in Line B, Pilot Operated From Line A	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #03	Performance Standard	Seal Material FKM	Series DGMPC-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Ralph A on Oct 4, 2025, 1:17 PM

flow rate on this unit is listed at 60 liters per minute -- is that gonna hold up for machine tool work or is it more of a light duty setup?

Answer by: Customer Support on Oct 5, 2025, 6:17 PM

Sixty liters per minute is a solid flow rate for machine tool applications, and that's exactly the kind of work this valve is built around. It covers multiple industrial uses beyond machine tools as well, so it's not a narrow-purpose part. For most standard machine tool circuits, that flow capacity handles the job without being oversized or undersized.
