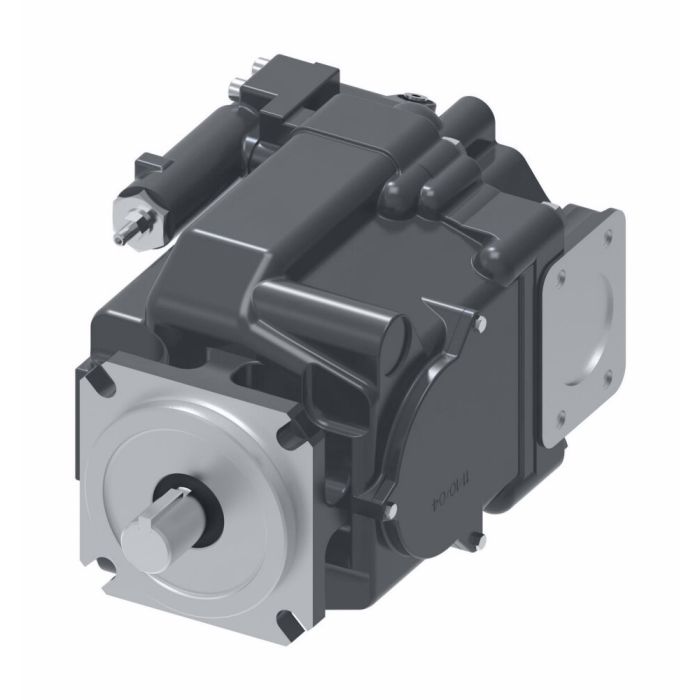

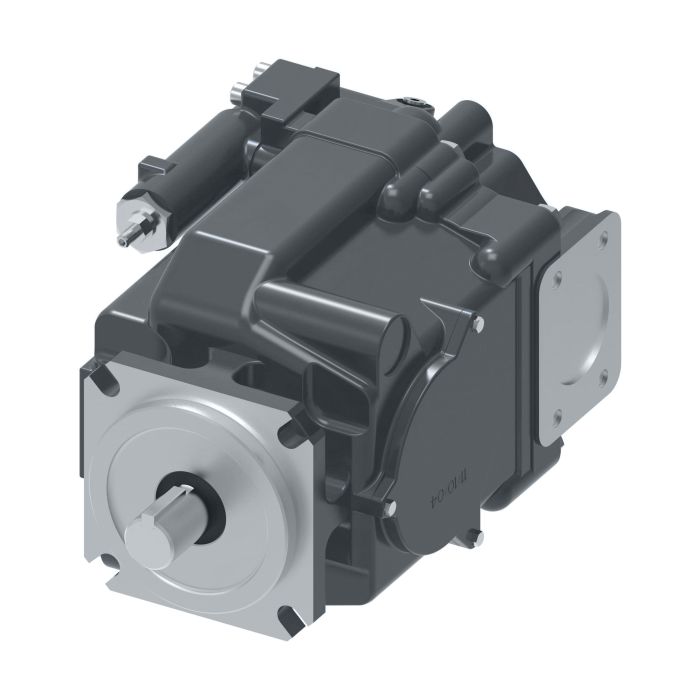

VICKERS PVH74QIC RAF 13S 10

Ask A Question

Description & Features

Designed for demanding industrial environments, the VICKERS PVH74QIC RAF 13S 10 excels in applications such as mining machinery, injection molding machines, and oil and gas equipment. Its robust construction and torque-limiting capabilities ensure long-lasting durability, making it ideal for conveyor lines, primary metals, and metal cutting equipment. This open circuit piston pump is a part of the renowned Vickers brand, known for reliability and performance in mobile hydraulic systems.

Featuring a Q250 valve plate, the pump provides enhanced operational efficiency. With a product width of 8.82 inches, it fits seamlessly into a variety of industrial setups. The VICKERS PVH74QIC RAF 13S 10 is engineered to deliver consistent performance, ensuring optimal functionality in critical applications.

SKU: 02-142666

Supplier Part Number (MPN): 02-142666

Specifications

Brand
Vickers by Danfoss
Aux Mount Output Shaft
2-Bolt A (SAE J744-82-2) with 17T 16/32 DP Splined Shaft (ANS B92.1A-1976)
Control Special Features
0.03 in Dia Orifice
Control Type
IC Pressure and Flow Compensator
Design Code
A
Dimensions
14.51 in L x 8.82 in W x 10.59 in H
Drain Port Size Location
3/4-16 UNF-2B SAE O-ring Port - Bottom (Top Plugged)
Drive Shaft Type
Straight Keyed
Front Mounting Input Shaft
4-Bolt C (SAE J744-127-4) with 38.1 [1-1/2] Dia Straight Keyed Shaft (Key Included), 62 mm [2.44 in] Shaft Extension
Housing Material
Iron
Main Ports Size Location
Side Ports, Suction - 2.000 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 1/2-13 UNC-2B Threads, Pressure - 1 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 3/8-16 UNC-2B Threads
Mounting Type
2-Bolt Flanged
nmfc
125820
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Series
PVH Series
Special Features
Q250 Valve Plate

Product Questions & Answers (2)

Question by: Troy J on Oct 3, 2025, 7:06 AM
what all is this pump used for? seen it mentioned for a few different things and just wanna make sure it'd work for what we got going on with our conveyor setup
Answer by: Customer Support on Oct 5, 2025, 6:38 AM
Conveyor lines are one of the listed applications for this pump, so you're in good shape there. It's also built for mining machinery, injection molding machines, metal forming, oil and gas equipment, primary metals work, and metal cutting equipment. Pretty broad range of heavy industrial use, which is part of why the PVH series has a strong track record in demanding environments.
Question by: Jimmy A on May 29, 2025, 10:30 AM
What kinda machines does this pump work on?
Answer by: Customer Support on May 31, 2025, 7:59 AM
This Vickers pump is used in mining, injection molding, metal forming, oil and gas, conveyor lines, primary metals, and metal cutting equipment.
