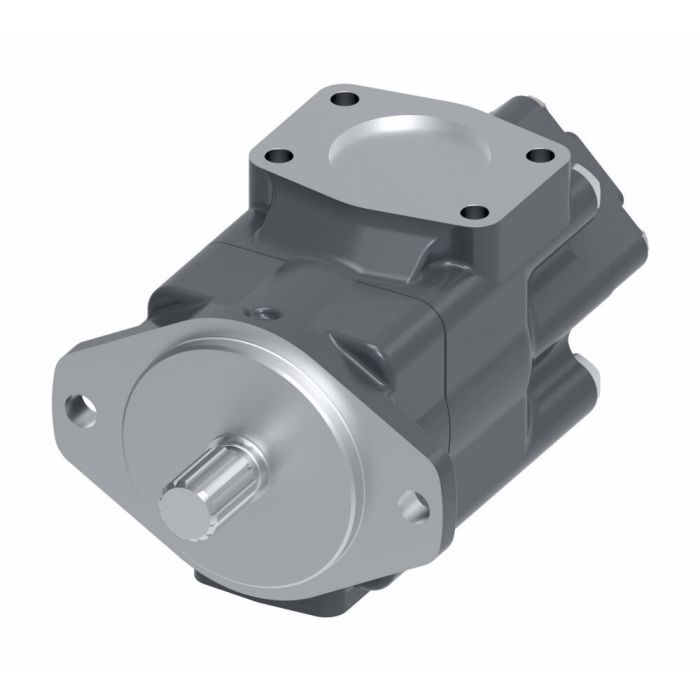

main product photo

VICKERS 4520V60A2 1CC22R

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers 4520V60A2 1CC22R vane pump delivers reliable performance across various applications, including plastics machinery, die casting, and marine industries. Its innovative intra-vane cartridge design minimizes noise and ensures excellent volumetric efficiency, making it an ideal choice for machine tools and test equipment. Constructed from durable cast iron, this pump offers a high flow rate of 121.23 liters per minute, providing robust and consistent operation.

The Vickers 4520V series vane pump is recognized for its versatility and efficiency in primary metal processing, pulp and paper, and wood processing sectors. This pump is part of the Vickers sub-brand, renowned for quality hydraulic solutions. Its compact design, with a width of 8.38 inches, allows for easy integration into existing systems without compromising on performance or reliability.

SKU: 02-143010-3

Supplier Part Number (MPN): 02-143010-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Dimensions
15.89 in L x 8.38 in W x 7.34 in H
Displacement
11.8 cu-in Shaft, 0.43 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
60 gpm Shaft, 2 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Post From CVR End
Outlet 1: Inline with Inlet, Outlet 2: 45 deg CW From Inlet
Outlet Size
3/4 in, 1-1/2 in
Outlet Type
Threaded
Port Connection
Inlet: 4 Bolt Flanged, Outlet 1: 4 Bolt Flanged, Outlet 2: 4 Bolt Flanged
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
4520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Cody C on Oct 19, 2025, 7:13 PM
Flow rate on this one shows 121 liters per minute, is that gonna hold up runnin it through a plastics machine or press setup, or is that more of a peak number?
Answer by: Customer Support on Oct 21, 2025, 6:16 AM
For plastics machinery and press applications, 121.23 liters per minute is the pump's rated flow output, not a burst or peak figure. The 4520V series was built with volumetric efficiency as a core priority, so what you see on the spec is what you can count on getting under load. The intra-vane cartridge design plays a big role in keeping that output consistent rather than letting it bleed off under pressure. It's a solid fit for those environments.
