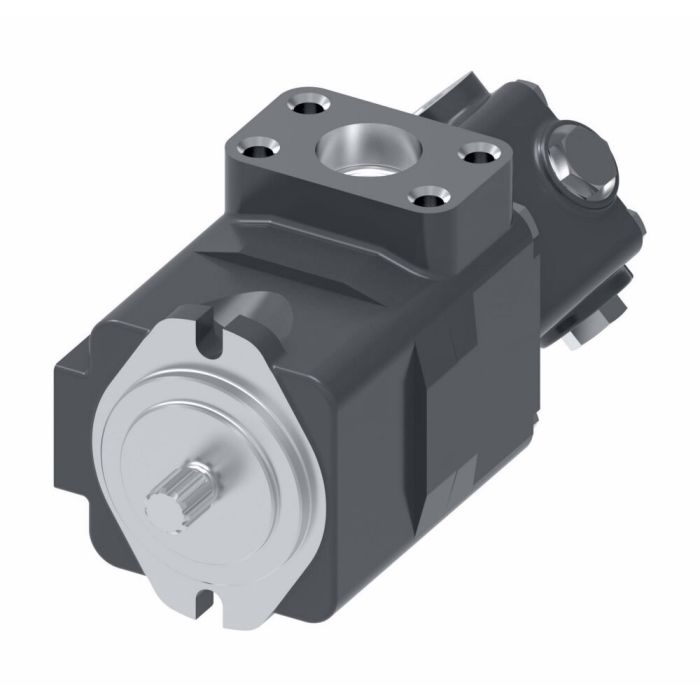

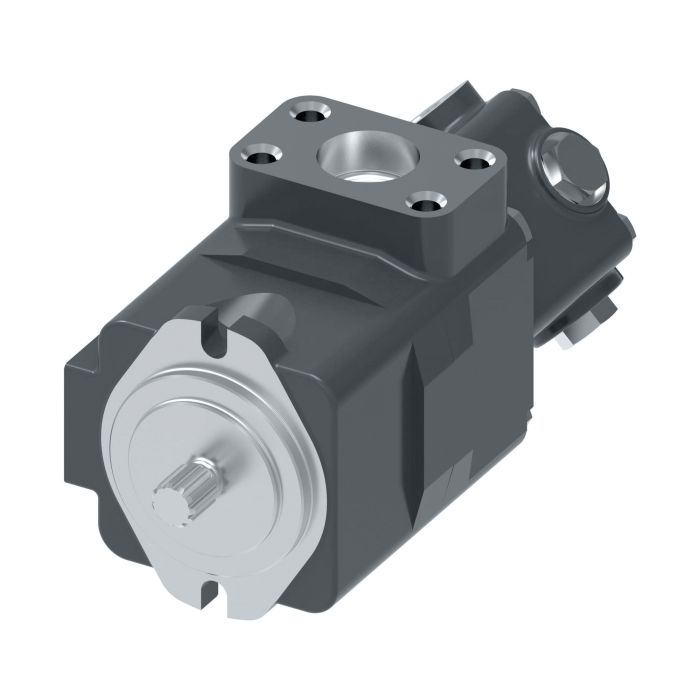

main product photo

Vickers V2010 1F6B2B 1AA12

Ask A Question

Description & Features

Designed for power steering systems and small industrial press units, the Vickers V2010 1F6B2B 1AA12 is a double-section vane pump built on the proven V2010 series platform. Its pressure-balanced, modular 12-vane design helps reduce noise and minimize flow pulsation, making it well suited for applications where consistent, smooth fluid delivery is a priority.

The pump delivers a flow rate of approximately 55.8 litres per minute and is constructed from cast iron for durability in demanding industrial environments. Buna-N seals are fitted as standard. The wide range of available displacements within the V2010 series supports flexible system configuration across a variety of small-unit hydraulic applications.

SKU: 02-143176-1

Supplier Part Number (MPN): 02-143176-1

Specifications

Brand
Vickers by Danfoss
Cartridge Type
12 Design
Design Code
12
Dimensions
10.7 in L x 6.87 in W x 5 in H
Displacement
0.4 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
6 gpm Shaft, 2 gpm Cover
Housing Material
Iron
Inlet Port Type
4 Bolt Flanged
Maximum Operating Pressure
2500 psi Cover
Mounting Type
2-Bolt Flanged
nmfc
77.50
Outlet Size
3/4 in, 1/2 in
Outlet Type
BSP
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Segment Code
A
Series
V2010 Series
Speed Rating
3000 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Ricky M on Jun 6, 2025, 10:25 AM
Running a small hydraulic press and been hunting for a pump that won't shake the whole machine apart every cycle. This V2010 1F6B2B 1AA12 built to handle that kind of thing?
Answer by: Customer Support on Jun 7, 2025, 2:47 PM
Smooth fluid delivery is exactly what this pump is built around. The 12-vane pressure-balanced design keeps flow pulsation low, which means less vibration transferred through your system. Cast iron construction holds up well in press applications, and at roughly 55.8 litres per minute, it fits the flow demands typical of small industrial press units.
