3525VQSV10S30A17S5S-297-BBB-21L

Ask A Question

Description & Features

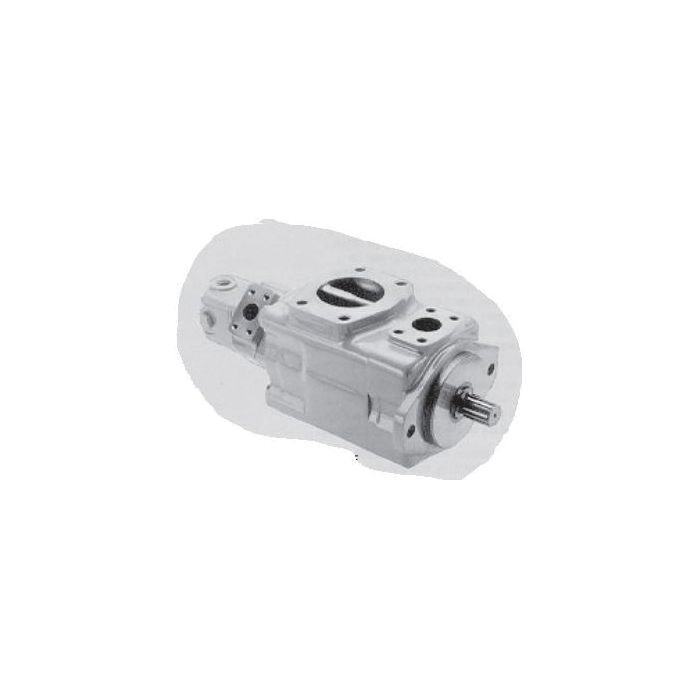

This Vickers by Danfoss / Eaton VQ(H) Series Vane Pump is designed for power steering, industrial small units, and small press applications. The 3525VQSV10S30A17S5S-297-BBB-21L features exceptional volumetric efficiency and a long operating life, making it suitable for high-pressure, high-speed applications.

Constructed from durable cast iron and sealed with Buna-N, this hydraulic vane pump offers a flow rate of 215.1086976 liters per minute. This Vickers pump is part of the 3525VQSV10 series.

SKU: 02-143189

Supplier Part Number (MPN): 02-143189

Specifications

Brand
Vickers by Danfoss
Cartridge Type
Intra-Vane
Dimensions
13.76 in L x 8.38 in W x 6.405 in H
Displacement
97.7 cc/rev Shaft, 55.2 cc/rev Cover
Drive Shaft Type
Splined
Flow Rate
30 gpm Shaft, 17 gpm Cover
Housing Material
Iron
Inlet Type
SAE 4-Bolt Flange
Maximum Operating Pressure
3000 psi
Mounting Type
Flange
nmfc
77.50
Number of Stages
2
Outlet Type
SAE 4-Bolt Flange
Rotation Direction
Counterclockwise
Seal Material
Nitrile
Series
3525VQ Series

Product Questions & Answers (1)

Question by: Kent C on Dec 20, 2025, 5:55 PM
flow rate on this vane pump is listed in liters, any chance somebody knows what that works out to in gallons per minute?
Answer by: Customer Support on Dec 21, 2025, 8:03 PM
Running the conversion, 215.1 liters per minute comes out to roughly 56.8 gallons per minute. That's a solid output for a pump in this class, well suited to the kind of high-pressure, high-speed work this unit is built around.
