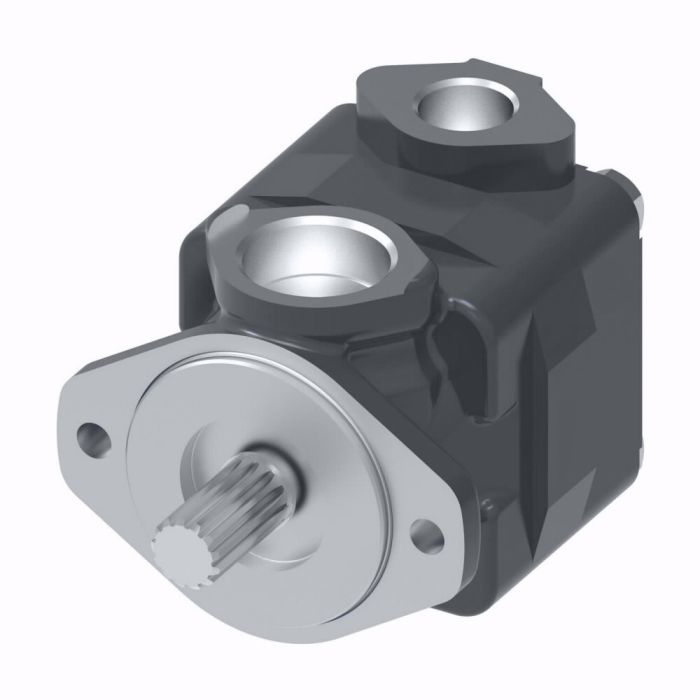

main product photo

Vickers V20 1P11S 62C11

Ask A Question

Description & Features

Designed for demanding industrial applications, the Vickers V20 1P11S 62C11 is a cast iron vane pump built for reliable performance across hydraulic systems in metal cutting, plastic injection molding, oil and gas, dump truck, and wheel loader environments.

The pump features a pressure-balanced, modular 12-vane design that reduces noise and minimizes flow pulsation, characteristics that matter in precision-sensitive or continuous-duty applications. A flow rate of approximately 88 litres per minute supports mid-range hydraulic circuit demands, and the V20 series offers a wide range of available displacements to suit varying system requirements.

Cast iron construction provides durability under sustained operating pressures, and the modular design supports straightforward integration into existing hydraulic circuits.

SKU: 02-143285-3

Supplier Part Number (MPN): 02-143285-3

Specifications

Brand
Vickers by Danfoss
Dimensions
6.63 in L x 5.12 in W x 4.79 in H
Housing Material
Iron
Inlet Type
NPT
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
Outlet Cover Port Orientation
Inline with Inlet Port
Outlet Size
1-1/16-12
Outlet Type
Threaded
Rotation Direction
In-Line with Inlet
Seal Material
Buna-N
Seal Type
Standard
Series
V20 Series
Shaft Pitch
16/32
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Keith H on Jun 1, 2025, 8:34 AM
Running a dump truck hydraulic setup and trying to figure out if this pump's flow rate is gonna keep up with demand. What kind of output are we actually looking at here?
Answer by: Customer Support on Jun 3, 2025, 6:07 AM
At right around 88 litres per minute, this pump sits comfortably in the mid-range for hydraulic circuit demands. For dump truck applications specifically, that output level is well suited to the lift and hold cycles those systems typically require. It's one of the listed application areas for this pump, so the flow capacity lines up with what that kind of work calls for.
