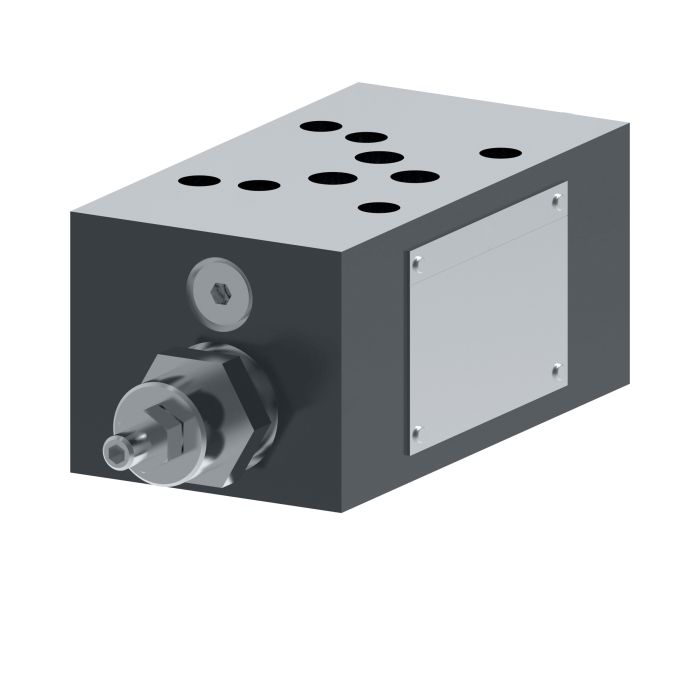

Vickers DGMC2 5 AT AW BT AW

Description & Features

This Vickers DGMC2 5 AT AW BT AW systemstak valve is suitable for applications such as die casting and foundry, machine tool, marine/offshore, press, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, and water).

Features of this Vickers valve include reduced installation costs, elimination of external leakage, and boosted resistance to contamination. It has a flow rate of 120 liters per minute and uses Buna-N seals. It measures 2.82 inches in width.

SKU: 02-143767

Supplier Part Number (MPN): 02-143767

Specifications

Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type SAE	Design 30 Series	Dimensions 9.84 in L x 2.82 in W x 1.97 in H	Domestic/Import Domestic	End Type SAE	External Drain Without External Drain	Function 1 Pressure Adjustment 60 to 725 psi	Function 2 Pressure Adjustment 60 to 725 psi	Gauge Port Thread SAE 4 O-ring Boss Port	Media Petroleum Oil	Nominal Size #5	Number of Stages 2	P Port Acted Upon B Cylinder Port	Performance Standard	Port Drained Into Tank Port	Port Drained Into Dual T Port	Port Operated Upon A Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Kirk C on Sep 4, 2025, 5:45 PM

Running a press line and trying to figure out if this valve handles the flow we need. We're pushing around 110 liters a minute through our system most days. That gonna be enough headroom with this one?

Answer by: Customer Support on Sep 6, 2025, 3:37 PM

At 120 liters per minute, you've got a comfortable buffer over your current demand. That headroom matters on press applications where flow spikes can catch you off guard. The Buna-N seals hold up well in those environments too, so you're not looking at a weak point on the sealing side.
