VICKERS-DGMX2-5-PP-FW-RC-B-30

Description & Features

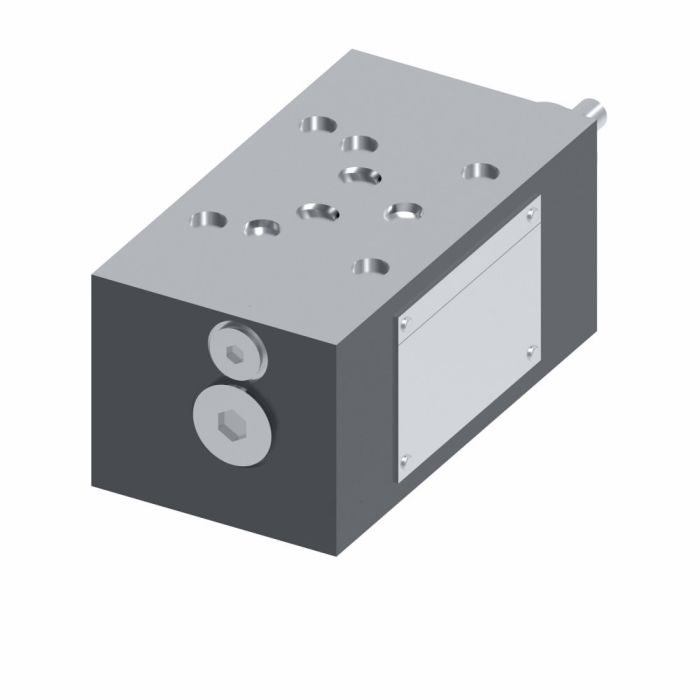

Designed for machine tool and diverse industrial applications, the Vickers by Danfoss / Eaton DGMX2-5-PP-FW-RC-B-30 SystemStak Valve offers robust performance with a flow rate of up to 120 liters per minute. Featuring advanced construction that reduces installation costs and eliminates external leakage, this valve ensures high resistance to contamination. The use of durable Buna-N seal material further enhances its reliability in demanding environments.

As part of the Vickers brand, this directional control valve integrates seamlessly into hydraulic systems, providing precise control and efficient operation. With a product width of 3.66 inches, it fits compactly into a variety of setups without compromising functionality. This valve's engineering excellence makes it an optimal choice for industries requiring dependable and efficient hydraulic solutions.

SKU: 02-143815

Supplier Part Number (MPN): 02-143815

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type BSP	Design Series 30 Series	Dimensions 9.13 in L x 3.66 in W x 3.15 in H	Domestic/Import Domestic	End Type BSP	External Drain Without External Drain	Gauge Port Thread 1/8 in BSPF	Language English	Media Petroleum Oil	Nominal Size #5	Number of Ports/Ways 5-Port	Number of Stages 1	Performance Standard	Pilot Control Pressure Port	Port Operated Upon P Pressure Port	Remote Control Port With Remote Control Port	Seal Material FKM	Series DGMX2-5 Series	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Connection Type	End Type	Dimensions
02-101518	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-101519	BSP	BSP	9.16 in L x 2.82 in W x 2.36 in H
02-101656	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-101968	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-119444	BSP	BSP	7.05 in L x 2.82 in W x 2.36 in H
02-119821	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-126174	BSP	BSP	9.16 in L x 2.82 in W x 2.36 in H
02-126863	Female UNF	Female UNF	6.69 in L x 2.82 in W x 2.36 in H
02-140109	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-140896	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-143719	Female UNF	Female UNF	9.13 in L x 3.66 in W x 3.15 in H
02-143807	Female UNF	Female UNF	9.13 in L x 3.66 in W x 3.15 in H
02-143808	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-143816	BSP	BSP	7.05 in L x 2.82 in W x 2.36 in H
02-145043	BSP	BSP	7.05 in L x 2.82 in W x 2.36 in H
02-148466	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-148614	Female UNF	Female UNF	9.16 in L x 2.82 in W x 2.36 in H
02-148887	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-149258	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-301773	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-304576	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-304577	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-309006	Female UNF	Female UNF	9.16 in L x 2.82 in W x 2.36 in H
02-317980	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-321725	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-324296	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-329513	BSP	BSP	9.16 in L x 2.82 in W x 2.36 in H
02-330061	Female UNF	Female UNF	9.16 in L x 2.82 in W x 2.36 in H
02-343858	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-355475	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-357703	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-361876	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H

Product Questions & Answers (1)

Question by: Todd A on Feb 22, 2026, 1:19 PM

flow rate on this thing tops out at 120 liters per minute -- is that enough for most machine tool setups or is it on the lower end?

Answer by: Customer Support on Feb 24, 2026, 9:56 AM

For machine tool applications, 120 liters per minute is a solid capacity. Most standard machine tool hydraulic circuits run well within that range, so the DGMX2-5-PP-FW-RC-B-30 handles those demands without being pushed to its limits. Where you'd want to double-check is if you're running multiple high-demand actuators simultaneously on a single circuit, but for typical machine tool work, that flow ceiling is more than adequate.
