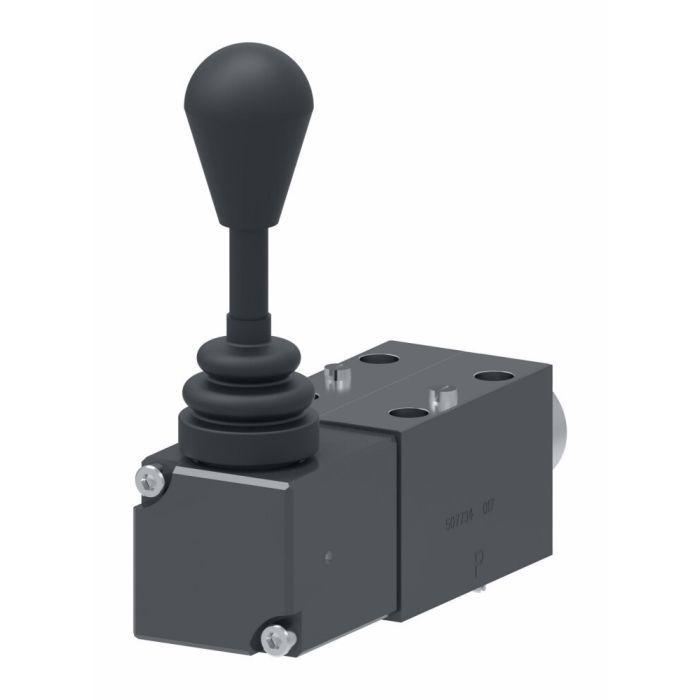

main product photo

VICKERS DG17V 3 8N 60

Ask A Question

Description & Features

The Eaton Vickers DG17V 3 8N 60 is a directional control valve designed for a variety of applications including die casting and foundry work, machine tools, marine and offshore, presses, primary metal production, paper mills, test equipment and simulation, and turbine control systems.

This Vickers sub-branded valve offers three- or four-way directional control and is easily mountable on industry-standard surfaces. It uses Buna-N seals and offers a flow rate of 75 liters per minute. The product width is 1.81 inches.

SKU: 02-144070

Supplier Part Number (MPN): 02-144070

Alternate Part Numbers: DG17V38N60

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Lever/Knob
Design
60 Series
Dimensions
5.96 in L x 1.81 in W x 5.96 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Language
English
Media
Petroleum Oil
Number of Stages
1
Performance
Standard-Performance
Seal Material
FKM
Series
DG17V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
No Spring Detented
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Question by: Eddie W on Jun 20, 2025, 10:20 AM
got a die casting machine that needs a single stage directional valve. is this DG17V-3 the right kind of valve for that?
Answer by: Customer Support on Jun 22, 2025, 7:44 AM
For die casting and foundry equipment, the DG17V-3 series fits the bill as a single stage directional control valve. It’s built for three-way or four-way directional control, which is the basic job you need for routing hydraulic flow in that kind of machine.
Question by: Troy J on Mar 23, 2026, 7:03 AM
flow rate on this valve is listed at 75 LPM, that enough for a press application or should i be looking at something bigger?
Answer by: Customer Support on Mar 24, 2026, 8:37 PM
For most press setups, 75 litres per minute is a solid working capacity. The DG17V-3 is built with press applications specifically in mind, so the flow rating lines up well with typical demand in that environment. If your system is running higher peak flows than that, you'd want to size up, but for standard press circuits this valve fits right in.
Question by: Rod A on Dec 1, 2025, 3:57 PM
Hey, I'm looking to replace a valve on an older piece of equipment. Any chance this one would fit right in?
Answer by: Customer Support on Dec 3, 2025, 10:18 AM
This Vickers DG17V-3 8N 60 valve is designed for easy mounting on industry-standard surfaces, so it's likely a suitable replacement if your current valve follows those standards.
