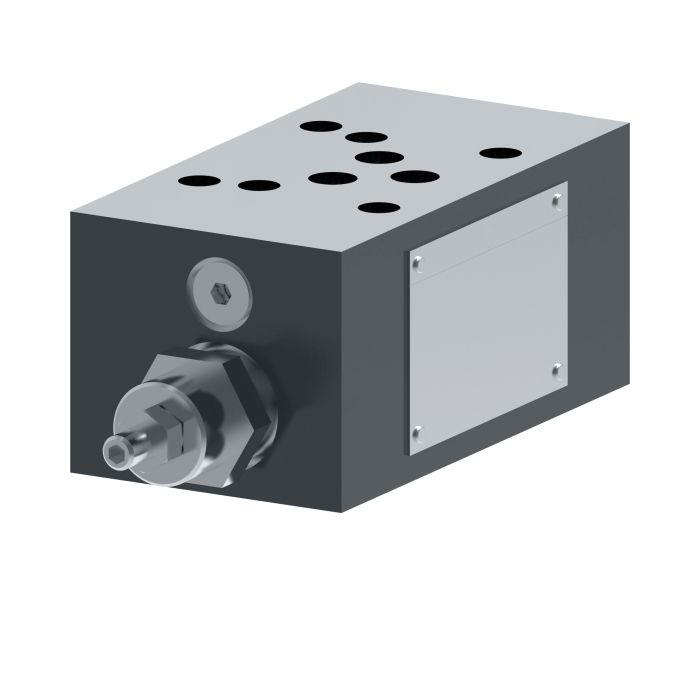

Vickers DGMC2 5 AT BW BT BW

Description & Features

The Eaton Vickers DGMC2 5 AT BW BT BW is a system stack valve designed for demanding applications.

This valve is suitable for use in die casting and foundry, machine tool, marine/offshore, press, primary metal, paper, test equipment & simulation, and turbine control (wind, steam, water) applications. Features of the Vickers DGMC2 5 AT BW BT BW include reduced installation costs, elimination of external leakage, and boosted resistance to contamination. It has a flow rate of 120 liters per minute. The seal material is Buna-N, and the product width is 2.82 inches.

SKU: 02-144111

Supplier Part Number (MPN): 02-144111

Alternate Part Numbers: DGMC25ATBWBTBWS30

Specifications

Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type SAE	Design 30 Series	Dimensions 9.84 in L x 2.82 in W x 1.97 in H	Domestic/Import Domestic	End Type SAE	External Drain Without External Drain	Function 1 Pressure Adjustment 60 to 1450 psi	Function 2 Pressure Adjustment 60 to 1450 psi	Gauge Port Thread SAE 4 O-ring Boss Port	Media Petroleum Oil	Nominal Size #5	Number of Stages 2	P Port Acted Upon B Cylinder Port	Performance Standard	Port Drained Into Tank Port	Port Drained Into Dual T Port	Port Operated Upon A Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Patty S on Feb 20, 2026, 5:01 PM

got a setup that’s picky about leaks. is this one meant to cut down on external leakage or am i barking up the wrong tree

Answer by: Customer Support on Feb 22, 2026, 4:53 PM

For systems where oil seepage is a problem, this valve is aimed at eliminating external leakage, which helps keep the stack cleaner and reduces mess around the installation.

Question by: Frank B on Jul 4, 2025, 8:52 AM

flow rate on this valve, is it 120 LPM? trying to match it up to what we already got running on our press line

Answer by: Customer Support on Jul 6, 2025, 7:08 AM

Correct, 120 litres per minute is the rated flow for this valve. If your press system is already running near that range, it should line up without you having to rework the circuit around it.
