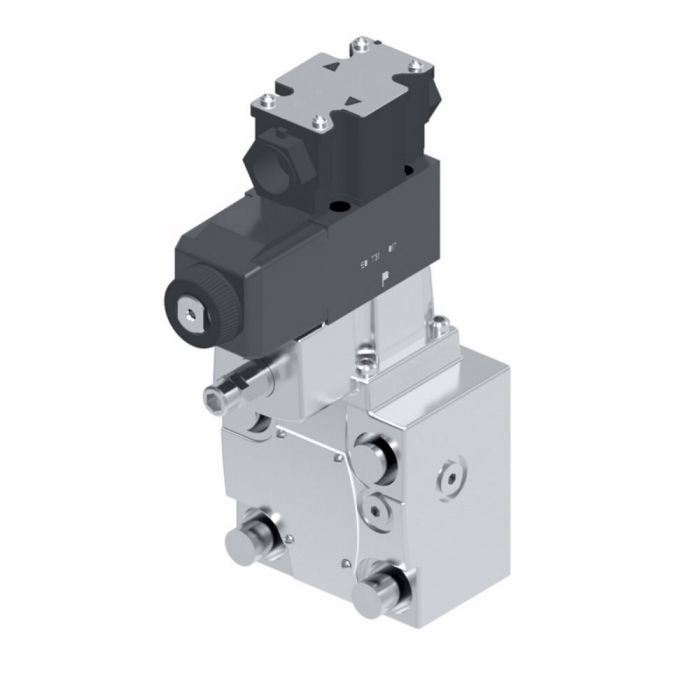

Vickers CG5 100A FV M FW B5

Description & Features

This Vickers CG5 100A FV M FW B5 pressure control valve is designed for applications requiring adjustable pressure relief or regulation. It effectively limits pressure in a hydraulic circuit to a desired maximum.

Featuring a plug-and-play design, this Vickers valve offers high performance and moisture resistance. It offers a flow rate of 454 liters per minute. Constructed with Buna-N seals, this valve ensures reliable sealing performance in demanding hydraulic environments. This valve has a width of 3.38 inches.

SKU: 02-144786

Supplier Part Number (MPN): 02-144786

Specifications

Actuator Type Pilot Operated, Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 100 Series	Dimensions 5.75 in L x 3.38 in W x 10.09 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Hi-Vent Spring With Hi-Vent Spring	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Nominal Size 10	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CG5-10 Series	Spring Arrangement Spring Offset	Valve Mount Type Subplate/Manifold	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Terry C on Nov 1, 2025, 8:28 PM

Can this valve handle hydraulic fluid with some moisture, or do I need to be extra careful about keeping things dry?

Answer by: Customer Support on Nov 3, 2025, 6:41 AM

This Vickers valve has moisture-resistant features and is constructed with Buna-N seals, which should provide reliable sealing even in demanding hydraulic environments. However, best practice is always to minimize moisture in your hydraulic systems to prolong the life of all components.

Question by: Curt K on Aug 24, 2025, 9:35 PM

Flow rate on this one says 454 liters per minute, is that enough for most pressure relief setups or is that on the lower end?

Answer by: Customer Support on Aug 26, 2025, 7:30 PM

For a pressure control valve handling adjustable relief or regulation duties, 454 liters per minute is actually a pretty solid flow capacity. Most standard hydraulic circuits running relief or pressure-limiting functions don't come close to pushing that much fluid through a single valve. You'd really only start bumping up against that number in high-volume industrial or heavy equipment applications. For the bulk of pressure regulation setups, that flow rating gives you plenty of headroom.
