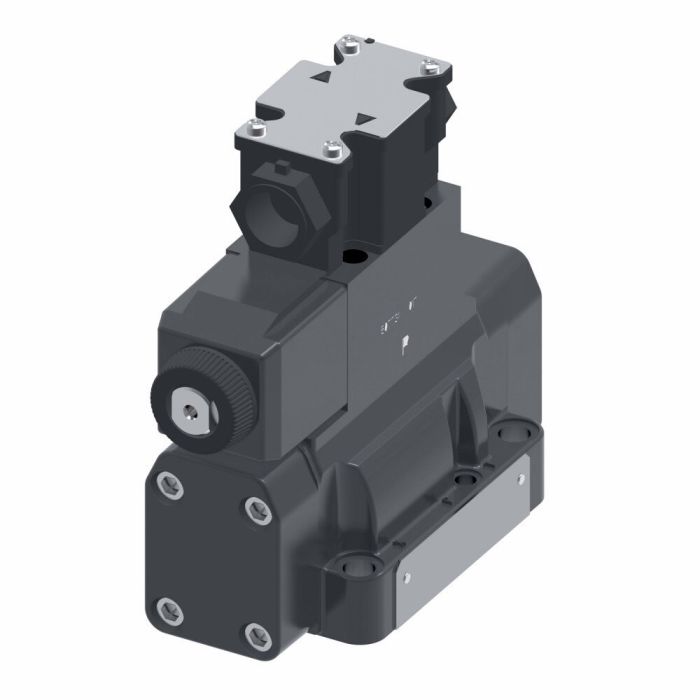

main product photo

Vickers DG5S4 042A T M FW

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG5S4 042A T M FW is a two-stage directional control valve capable of handling flow rates up to 94 litres per minute. It supports three- or four-way directional control configurations and mounts on industry-standard surfaces, making it a practical fit across a broad range of hydraulic systems.

Buna-N seals provide reliable fluid compatibility in typical hydraulic media. The valve is suited for use in machine tool, press, primary metal, marine and offshore, die casting and foundry, turbine control, and test equipment applications. No special features are noted for this configuration.

SKU: 02-145055

Supplier Part Number (MPN): 02-145055

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
70 Series
Dimensions
7.64 in L x 3.5 in W x 6.51 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5S4-04 70 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Chad F on Aug 29, 2025, 6:44 PM
flow rate on this one goes up to 94 LPM, that right? trying to figure out if it'll keep up with our press line without bottlenecking the system
Answer by: Customer Support on Aug 31, 2025, 7:07 AM
94 litres per minute is the rated flow for this valve, so yes, that's correct. For press applications it's actually one of the listed use cases, so it's a reasonable fit for that kind of work. Just make sure the rest of your circuit is sized to match and you won't be leaving capacity on the table.
Question by: Carl H on Apr 1, 2026, 7:19 AM
Hey, will this here Vickers valve work okay in a die casting setup?
Answer by: Customer Support on Apr 2, 2026, 11:26 AM
This DG5S4 valve is indeed suitable for die casting and foundry applications, as well as machine tool, press, and marine/offshore environments.
