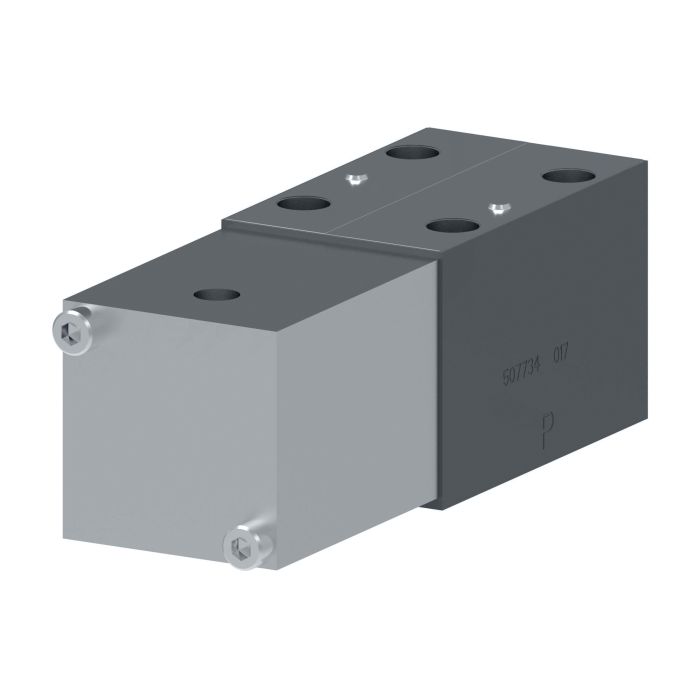

VICKERS DG18V 3 2A B 60

Description & Features

The Vickers DG18V 3 2A B 60 is a directional control valve designed for demanding applications such as die casting, machine tools, marine and offshore equipment, presses, and primary metal processing. It's also well-suited for paper mills, test equipment, turbine control (wind, steam, and water), and simulation systems.

This Vickers sub-brand valve features three- or four-way directional control and is easily mounted on industry-standard surfaces. Constructed with a Buna-N seal material, it has a flow rate of 75 liters per minute and a product width of 1.81 inches.

SKU: 02-145116

Supplier Part Number (MPN): 02-145116

Alternate Part Numbers: DG18V32AB60

Specifications

Brand Vickers by Danfoss	Actuator Type Air, Solenoid	Design 60 Series	Dimensions 5.77 in L x 1.81 in W x 1.96 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Language English	Manual Override Operator End	Media Petroleum Oil	Number of Stages 1	Performance Standard-Performance	Pilot Source Thread 1/8 in BSP	Seal Material FKM	Series DG18V-3 60 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset to A	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Actuator Type	Seal Material	Dimensions
02-119301	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-127770	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-127784	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-127971	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-128079	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-134327	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
02-134724	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
02-145115	Air, Solenoid	FKM	7.91 in L x 1.81 in W x 1.96 in H
02-149004	Air, Solenoid	Buna-N	7.91 in L x 1.81 in W x 1.96 in H
02-304680	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
02-324401	Air	Buna-N	12.06 in L x 1.81 in W x 1.96 in H
02-339196	Air, Solenoid	FKM	5.77 in L x 1.81 in W x 1.96 in H
