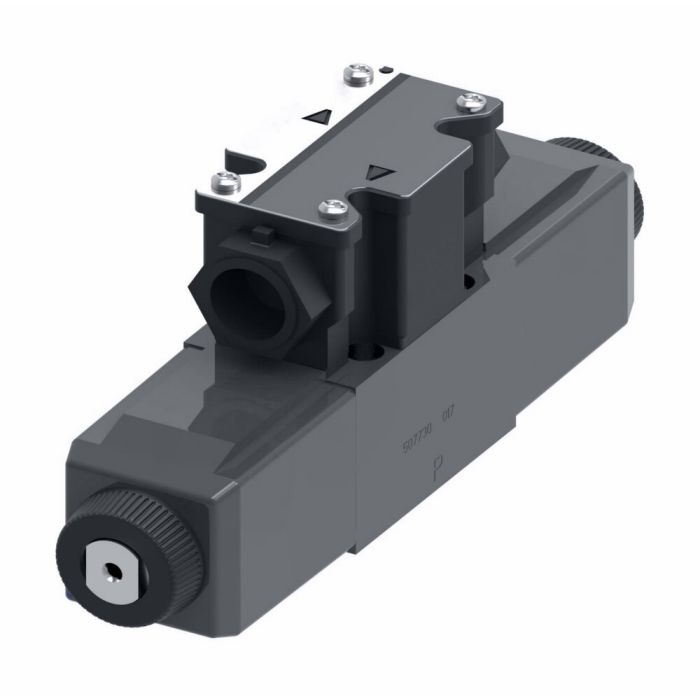

Vickers DG4V 3S 8C V M FW B5 61 EN21

Ask A Question

Description & Features

Designed for three- and four-way directional control in demanding hydraulic circuits, the Vickers DG4V 3S 8C V M FW B5 61 EN21 is a single-stage directional control valve rated for flow up to 80 litres per minute. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media, and the 30-watt solenoid rating suits standard industrial power supplies.

Mounting follows industry-standard surface patterns, making installation straightforward in retrofit and new-build configurations alike. CSA approval is included, supporting use in certified installations. Suitable applications span machine tools, press systems, die casting and foundry equipment, marine and offshore installations, primary metal and paper processing, turbine control, and test and simulation equipment.

SKU: 02-145177

Supplier Part Number (MPN): 02-145177

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
61 Series
Dimensions
7.87 in L x 1.8 in W x 3.57 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
A
Series
DG4V-3 61 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Flow Rate Power Rating Price Action
Vickers DG4V 3 8C V M FW B6

02-148415

Vickers DG4V 3S 8C V M FWL

02-155317

Product Questions & Answers (2)

Question by: Duane M on Sep 3, 2025, 6:04 AM
flow rate on this unit is listed at 80 litres per minute -- is that enough for a press application or should I be lookin at something heavier duty?
Answer by: Customer Support on Sep 4, 2025, 8:08 PM
For most press systems, 80 litres per minute is a solid working capacity. That flow rating puts it well within range for typical press hydraulic circuits, and press applications are actually listed as one of the intended uses for this valve. As long as your system demands fall at or below that threshold, you should be in good shape with this one.
Question by: Lynn J on Jul 26, 2025, 9:40 PM
Will this work okay for a die casting setup?
Answer by: Customer Support on Jul 28, 2025, 8:28 AM
Application-wise, yes, this Vickers valve is definitely suitable for die casting and foundry equipment, along with machine tools, presses, marine/offshore uses, primary metal and paper processing, turbine control, and test/simulation equipment.
