Vickers CG 10 CBC DG8C V M

Description & Features

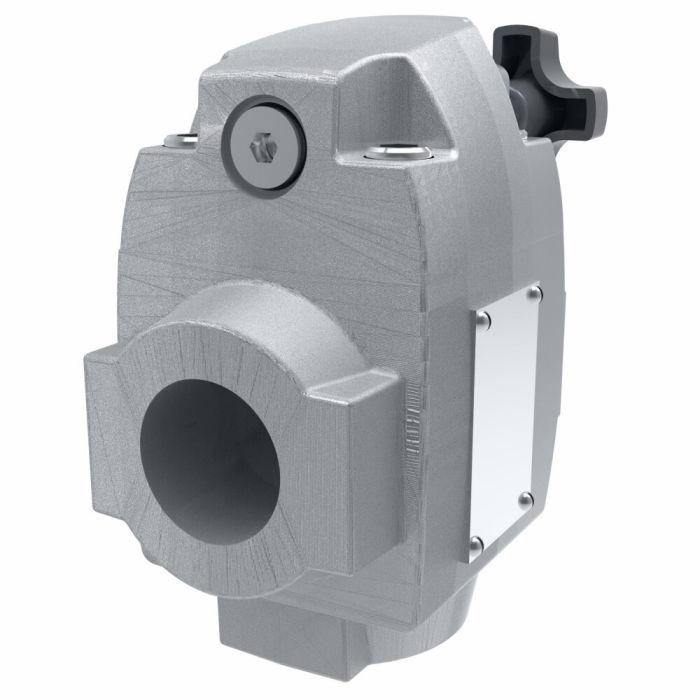

This Vickers CG 10 CBC DG8C V M pressure control valve is designed for applications requiring adjustable pressure relief or regulating capabilities, effectively limiting pressure in a hydraulic circuit to a desired maximum.

This Vickers valve features a plug-and-play design and moisture resistance, with high-performance features. It utilizes Buna-N seals and offers a maximum flow rate of 454 liters per minute. Measures 5.27 inches in width.

SKU: 02-145221

Supplier Part Number (MPN): 02-145221

Specifications

Actuator Type Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Design 41 Series	Dimensions 7.87 in L x 5.27 in W x 11.16 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Media Petroleum Oil	Nominal Size 10	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CG-10 Series	Valve Mount Type Subplate/Manifold	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Curt W on May 4, 2025, 7:45 PM

what's the max flow this thing can handle before it starts dropping off?

Answer by: Customer Support on May 6, 2025, 5:15 PM

Rated at 454 liters per minute, so it's got plenty of capacity for most industrial circuit applications. That flow rating gives you solid headroom if you're running higher-demand equipment and need reliable pressure regulation without bottlenecking the system.

Question by: Ronnie T on Aug 1, 2025, 9:45 AM

Will this handle workin' with some of them thicker hydraulic fluids, or is it more for the light stuff?

Answer by: Customer Support on Aug 2, 2025, 10:55 AM

Designed with Buna-N seals, this Vickers pressure control valve is compatible with a range of hydraulic fluids commonly used in industrial applications.
