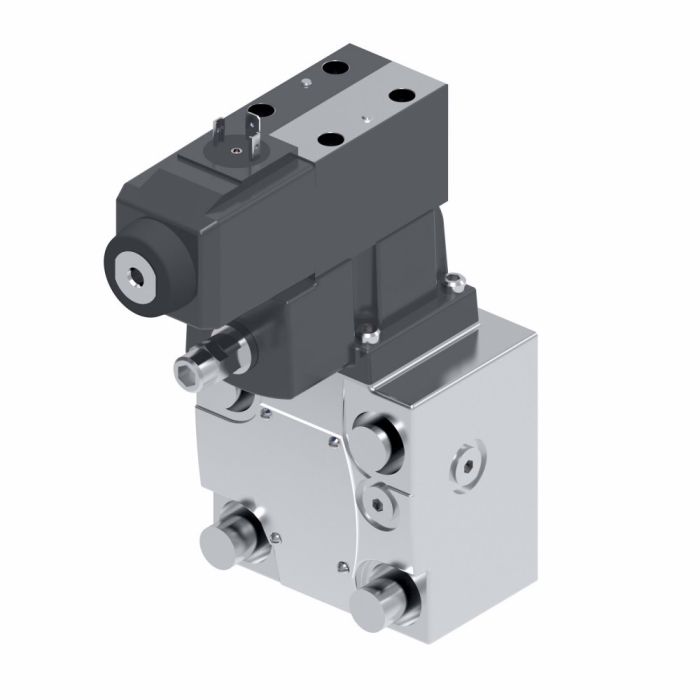

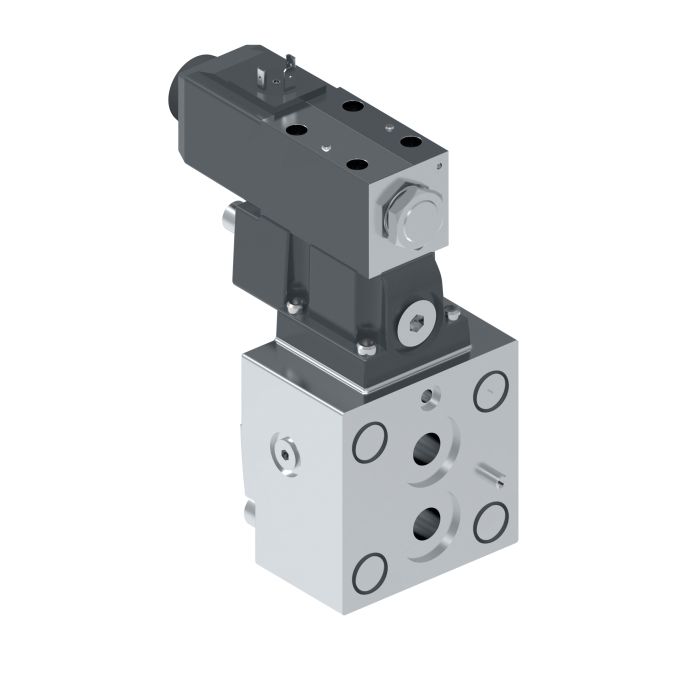

Vickers CG5 060A B M U B5

Ask A Question

Description & Features

Designed for hydraulic circuits requiring adjustable pressure control, the Vickers CG5 060A B M U B5 is a pressure relief and regulating valve suited to applications where maximum system pressure must be precisely limited. It handles flow rates up to 227 litres per minute, making it appropriate for moderate-to-high-demand industrial hydraulic systems.

Buna-N seals provide reliable resistance to moisture and common hydraulic fluids. The plug-and-play design supports straightforward installation and replacement in compatible valve stations. This valve carries no special feature restrictions and is supplied as an individual unit.

SKU: 02-145353

Supplier Part Number (MPN): 02-145353

Specifications

Actuator Type
Pilot Operated, Solenoid
Adjustment Type
Wrench
Body Material
Iron
Design
100 Series
Dimensions
5.75 in L x 2.81 in W x 9.65 in H
Domestic/Import
Domestic
Drain
Internal
Gauge Port Thread
0.4375-20 UNF-2B
Leakage
Standard
Manual Override
Plain
Media
Petroleum Oil
Nominal Size
#06
Number of Stages
2
Performance
Standard
Remote Control
With Remote Control
Seal Material
Buna-N
Segment Code
C
Series
CG5-06 Series
Spring Arrangement
Spring Offset
Valve Mount Type
Subplate
Voltage Rating
110 VAC at 50 Hz, 115/120 V at 60 Hz

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Norm M on Jan 30, 2026, 2:24 PM
Flow rate on this one is listed at 227 litres per minute, is that enough to run a mid-size industrial press without the valve becoming a bottleneck?
Answer by: Customer Support on Feb 1, 2026, 6:32 AM
For most mid-size industrial press setups, 227 litres per minute gives you solid headroom. That flow capacity puts it well within the range for moderate-to-high-demand hydraulic systems, so you're unlikely to hit a restriction problem under normal operating conditions. Just make sure your circuit's actual peak demand stays within that ceiling and you should be in good shape.
