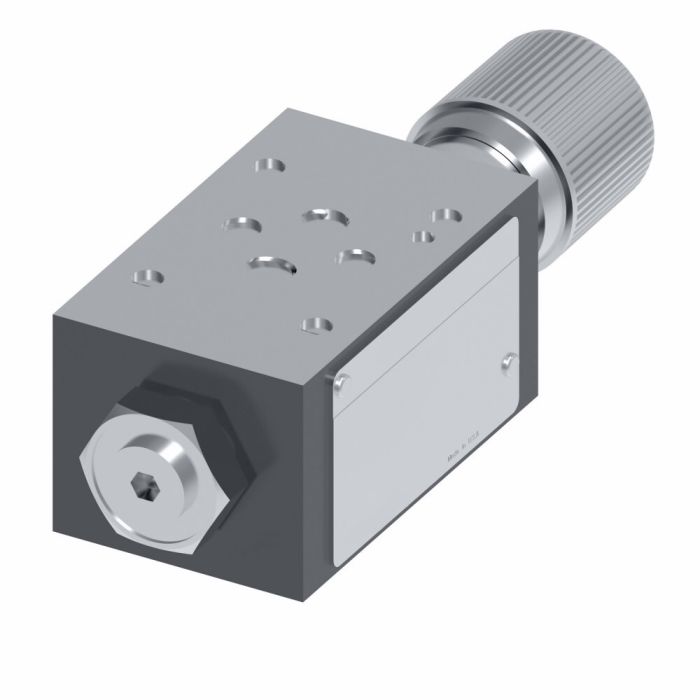

VICKERS DGMX2 3 PB CH S 40

Description & Features

Designed for machine tool and general industrial hydraulic circuits, the Vickers DGMX2 3 PB CH S 40 is a SystemStak directional control valve built to streamline multi-valve installations. It operates at flow rates up to 60 litres per minute and uses Buna-N seals suited to a broad range of hydraulic fluids.

As part of the Vickers SystemStak series, this valve is configured for stacked assembly, which reduces the need for individual interconnecting hardware and eliminates external leakage points between valve bodies. The design also offers improved resistance to contamination, a practical advantage in demanding industrial environments where fluid cleanliness is critical to circuit reliability.

SKU: 02-146377

Supplier Part Number (MPN): 02-146377

Specifications

Actuator Type Pressure Operated	Adjustment Location Adjuster - B Port End of Valve	Adjustment Type Handknob	Body Material Iron	Connection Type Female UNF	Design Series 40 Series	Dimensions 8.19 in L x 2.82 in W x 2.36 in H	Domestic/Import Domestic	End Type Female UNF	Function Ports Reducing Line P, Pilot Line B	Gauge Port Thread SAE 4 (7/16-20 UNF-2B)	Language English	Media Petroleum Oil	Nominal Size #03	Number of Ports/Ways 3-Port	Number of Stages 1	Performance Standard	Seal Material FKM	Segment Code C	Series DGMX2-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Wes D on Dec 4, 2025, 6:48 PM

Reckon this valve can handle gettin' plumb full flow, or will it choke things down some?

Answer by: Customer Support on Dec 6, 2025, 6:11 AM

This SystemStak valve is designed to handle flow rates up to 60 liters per minute, so it shouldn't restrict things in most typical applications within that limit.

Question by: Eddie G on Dec 15, 2025, 7:32 PM

we run a stacked valve setup on a couple machine tool circuits and been looking at switching some components over, does this DGMX2 fit into that kind of multi-valve assembly without needing a bunch of extra fittings between each body?

Answer by: Customer Support on Dec 17, 2025, 11:36 AM

Stack mounting is exactly what this valve is built around. The SystemStak design lets you bolt valves together in a manifold-style arrangement without individual interconnecting hardware between each unit. That cuts down on leak points considerably, since there are no external connections running fluid from one valve body to the next. For machine tool circuits especially, that kind of clean assembly makes a real difference in keeping things tight and reducing potential failure spots over time.
