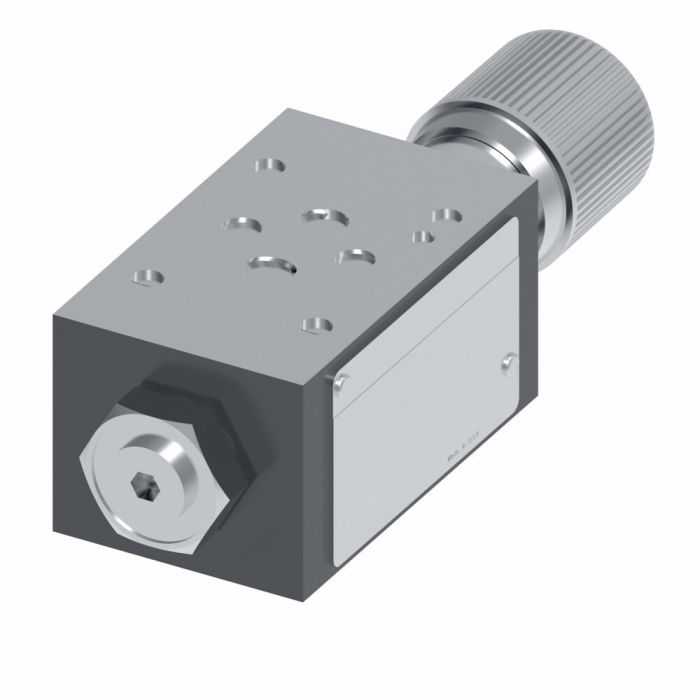

VICKERS DGMX2 3 PP CH S 40

Ask A Question

Description & Features

The VICKERS DGMX2 3 PP CH S 40 is a system stack valve designed for machine tool and various industrial applications. This valve helps reduce installation costs and eliminate external leakage.

Featuring a Buna-N seal material, this Vickers valve offers enhanced resistance to contamination and a flow rate of 60 liters per minute. With a product width of 2.82 inches, this sub brand Vickers valve provides reliable performance in demanding environments.

SKU: 02-146378

Supplier Part Number (MPN): 02-146378

Specifications

Actuator Type
Pressure Operated
Adjustment Location
Adjuster - B Port End of Valve
Adjustment Type
Handknob
Body Material
Iron
Connection Type
Female UNF
Design Series
40 Series
Dimensions
9.16 in L x 2.82 in W x 2.36 in H
Domestic/Import
Domestic
End Type
Female UNF
Function Ports
Reducing Line P, Pilot Line P
Gauge Port Thread
SAE 4 (7/16-20 UNF-2B)
Language
English
Media
Petroleum Oil
Nominal Size
#03
Number of Ports/Ways
3-Port
Number of Stages
1
Performance
Standard
Seal Material
FKM
Series
DGMX2-3 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Scott W on May 25, 2025, 8:58 PM
Hey, can this here valve handle gettin' a little somethin' spilled on it? We use all kinda fluids in the shop.
Answer by: Customer Support on May 27, 2025, 6:49 AM
Built with a Buna-N seal material, this Vickers valve offers enhanced resistance to contamination, so minor spills shouldn't be a problem.
Question by: Denise A on Oct 6, 2025, 11:58 AM
flow rate on this one is 60 LPM, that right? trying to match it up to what we already got running on the line
Answer by: Customer Support on Oct 7, 2025, 7:00 PM
60 liters per minute is correct for this valve. That's the rated flow for the DGMX2-3, so if your existing setup is running at or under that threshold, you're in the right range for a match.
