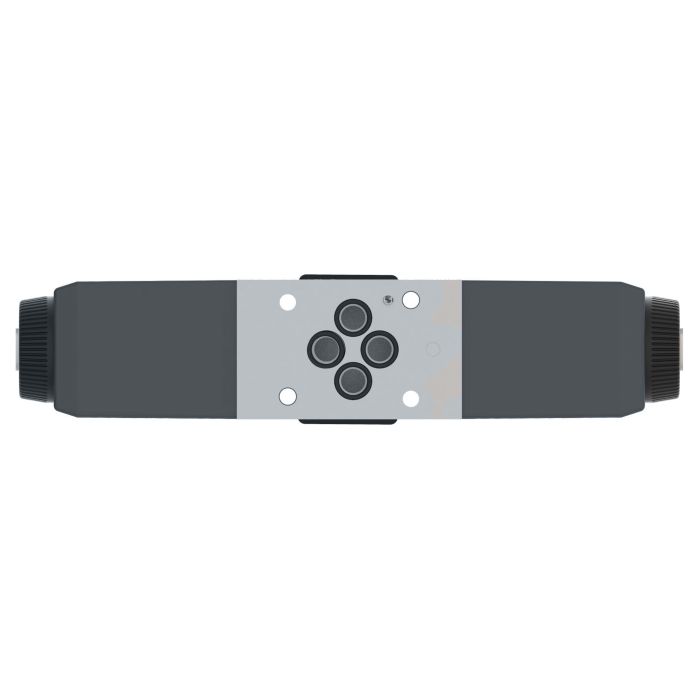

main product photo

Vickers DG4V 3S 6C M FTW B5

Ask A Question

Description & Features

The Vickers DG4V 3S 6C M FTW B5 is a directional control valve designed for applications such as die casting and foundry work, machine tools, marine and offshore equipment, presses, primary metal processing, paper mills, test equipment and simulation, and turbine control systems for wind, steam, and water turbines. This Vickers valve is easily mountable on industry-standard surfaces.

This three- or four-way directional control valve has a flow rate of 80 liters per minute. It features Buna-N seals and requires 30 watts of power.

SKU: 02-146408

Supplier Part Number (MPN): 02-146408

Alternate Part Numbers: DG4V-3S-6C-M-FTW-B5-6, DG4V3S6CMFTWB560

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
7.87 in L x 1.8 in W x 3.57 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Wired Terminal Block, 1/2 in NPT Thread Wiring Housing
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Earl P on Jul 11, 2025, 7:25 PM
flow rate on this one is 80 lpm, that right? trying to match it to what we been running on our press line and don't want to come up short
Answer by: Customer Support on Jul 13, 2025, 2:36 PM
80 liters per minute is correct for this valve. That puts it in solid territory for press applications, which is actually one of the listed uses for this model. As long as your system demand doesn't push past that threshold, you're in good shape for that kind of duty.
Question by: Jimmy O on May 24, 2025, 8:46 PM
Y'all got any idea what kind of flow rate I'm lookin' at with this thing?
Answer by: Customer Support on May 26, 2025, 4:14 PM
This Vickers valve handles a flow rate of 80 liters per minute.
