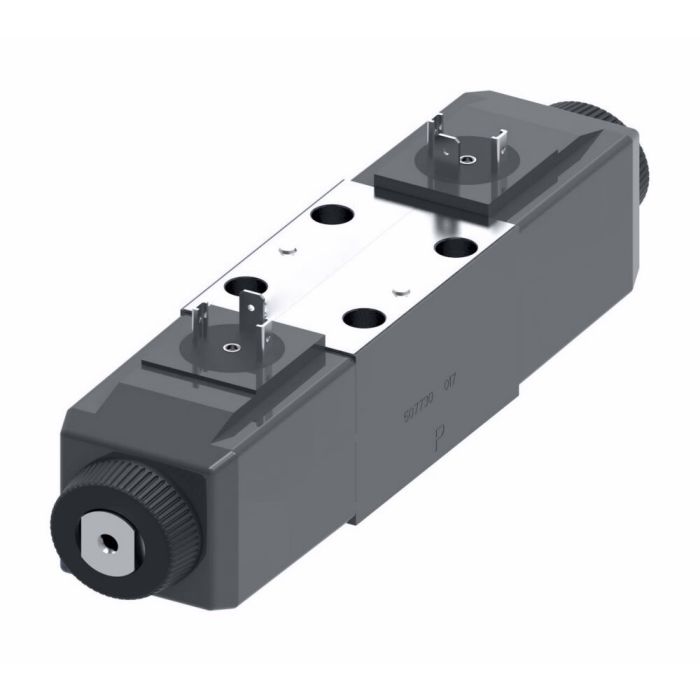

Danfoss / Eaton Vickers KDG4V-3 Series

Description & Features

Ideal for demanding environments like die casting, marine, and turbine control, the Eaton Vickers KDG4V-3 Series is a versatile choice for varied industrial applications. This direct-acting proportional valve is engineered to deliver precise flow control with a capacity of 20 liters per minute, making it suitable for machine tools and press use. The valve's fluorocarbon seals ensure durability and reliability under challenging conditions.

Available in ultra, high, and standard performance levels, this series offers plug-and-play functionality to reduce commissioning time. Its compact design, with a width of 1.9 inches, allows for easy integration into existing systems. The KDG4V-3 Series exemplifies the Vickers brand's commitment to high-quality hydraulic solutions.

SKU: 02-146720

Supplier Part Number (MPN): 02-146720

Alternate Part Numbers: KDG4V32C20NZMUH760

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Type
Spring Centered
Design Series
60 Series
Dimensions
9.37 in L x 1.9 in W x 3.4 in H
Domestic/Import
Domestic
Feedback Sensor
Without Feedback Sensor
igs Only
With igs
Language
English
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Segment Code
C
Series
KDG4V-3 60 Series
Spool Type
All Ports Blocked
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Similar Products

Model Number Flow Rate Voltage Rating Dimensions Price Action
Vickers KDG4V 3S 2C08S M U

02-135151

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3S 2C08N M U

02-135162

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 2C15S M U

02-135164

8.647 in L x 2.01 in W x 2.044 in H

Vickers KDG4V 3S 2C19S M U

02-135165

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 2C19S M U

02-135179

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 2C13N Z M U

02-146722

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 2C07N Z M U

02-146723

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 2C28S Z M U

02-146925

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 2C20N H M U

02-147600

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 2C13N H M U

02-147623

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 2C20N M U H760

02-147675

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V3S2C19NHMUG560

02-148055

8.64 in L x 1.81 in W x 3.58 in H

VICKERS KDG4V-3S-2C15N-M-U-HA5-60

02-148890

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 2C19N M U

02-149542

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 2C19N M U

02-149710

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 2C08N M U

02-155923

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 2C19N M U

02-155925

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 2C13N M U

02-157183

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V32020NZMUHA760

02-157769

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V3S2C15NMUH560

02-310275

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 2C28S M U

02-310761

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3S 2C15N M U GP5 60

02-329307

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 2C28S H M U G7 60

02-332098

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3S 2C08N H M U G5 60

02-394815

8.64 in L x 1.81 in W x 3.58 in H

Product Questions & Answers (1)

Question by: Wade B on Oct 11, 2025, 9:16 AM
got a KDG4V-3 setup already, is this the kind of proportional valve that’s direct-acting or do i need to plan on piloting it
Answer by: Customer Support on Oct 12, 2025, 11:48 AM
Direct-acting is one of the stated features on the KDG4V-3 series, so it is not a pilot-operated style valve based on the info provided.
