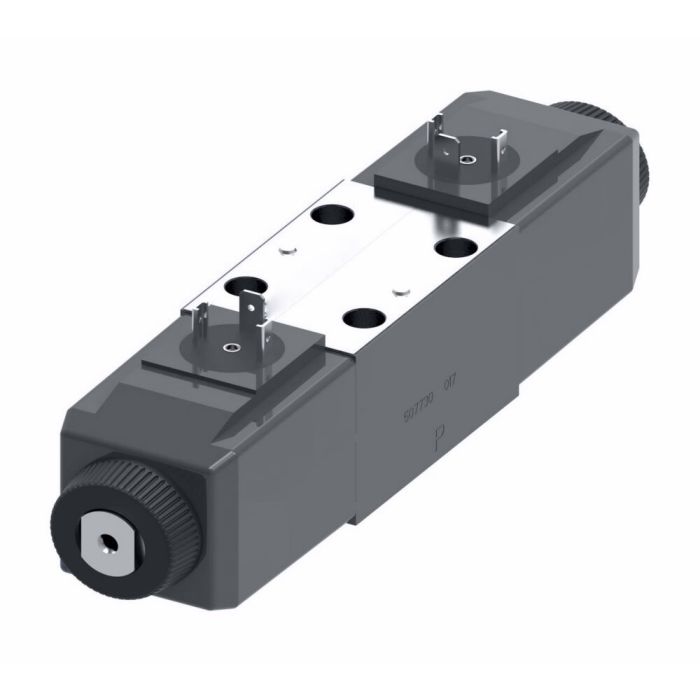

Danfoss / Eaton Vickers KDG4V-3 Series

Description & Features

Eaton Vickers KDG4V-3 Series proportional valves offer direct-acting control for demanding applications, including die casting, machine tools, marine/offshore environments, presses, primary metal production, paper mills, test equipment, simulation systems, and turbine control for wind, steam, and water applications.

These Vickers valves are available in three performance levels, ultra, high, and standard, to meet diverse application needs. They feature plug-and-play functionality to reduce commissioning time. The seal material is fluorocarbon.

This valve has a flow rate of 3 liters per minute and a 1.9-inch width.

SKU: 02-146926

Supplier Part Number (MPN): 02-146926

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Type
Spring Centered
Design Series
60 Series
Dimensions
9.37 in L x 1.9 in W x 3.4 in H
Domestic/Import
Domestic
Feedback Sensor
Without Feedback Sensor
igs Only
With igs
Language
English
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Fine Meter-In/Fine Meter-Out
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Segment Code
C
Series
KDG4V-3 60 Series
Spool Type
P Blocked, A and B to Tank
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Similar Products

Model Number Flow Rate Voltage Rating Dimensions Price Action
Vickers KDG4V 3S 33C08A M U

02-135150

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C15A M U

02-135161

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C08A M U

02-140083

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C22A M U H5 60

02-140085

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C08A M U

02-141687

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 33C20N Z M

02-146721

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C13N Z M

02-146928

9.37 in L x 1.9 in W x 3.4 in H

Danfoss / Eaton Vickers KDG4V-3 Series

02-147108

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V333A20NHMUHA760

02-147599

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C13N H M U H7 60

02-147601

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C20N H M U H7 60

02-147633

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3S 33C22A M U

02-148364

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C22A M U GP5 60

02-148365

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C15A M U

02-155391

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 33C20N M U

02-156062

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V333C30XMUHA760

02-157027

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C 30X M U H7 60

02-157450

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V-3-33C30X-Z-M-U-H7-60

02-157628

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C07N M U

02-318375

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C13N M U

02-318376

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V-3S-33C04A-M-U-GP5-60

02-321545

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 33C13N H M U G7 60

02-333024

9.37 in L x 1.9 in W x 3.4 in H

VICKERS-KDG4V-3S-33C15N-M-U-G5-60

02-343510

8.64 in L x 1.81 in W x 3.58 in H

VICKERS-KDG4V3-33C27N-Z-M-U-H7-60

02-352552

9.37 in L x 1.9 in W x 3.4 in H

VICKERS-KDG4V3-33C27N-Z-M-U-H7-60

02-352553

9.37 in L x 1.9 in W x 3.4 in H

VICKERS-KDG4V-3S-33C15A-H-M-U-GP5-60-EN5

02-355632

8.64 in L x 1.81 in W x 3.58 in H

VICKERS-KDG4V-3S-33C22N-M-U-H5-60

02-356806

8.64 in L x 1.81 in W x 3.58 in H

VICKERS KDG4V-3S-33C15A-H-M-U-HA5-60-EN5

02-360084

8.64 in L x 1.81 in W x 3.58 in H

VICKERS KDG4V-3S-33C22A-H-M-U-GP5-60

02-399213

8.64 in L x 1.81 in W x 3.58 in H

Product Questions & Answers (2)

Question by: Terry B on Apr 5, 2025, 7:46 AM
What kind of machines would this valve be good for?
Answer by: Customer Support on Apr 6, 2025, 8:02 AM
This Vickers valve is applicable to die casting and foundry work, machine tools, marine and offshore applications, presses, primary metal, paper, test equipment and simulation, and turbine control for wind, steam, and water.
Question by: Billy D on Oct 15, 2025, 2:42 PM
got a die casting machine that needs a proportional valve, is the KDG4V-3 series even the right kind of valve for that?
Answer by: Customer Support on Oct 17, 2025, 12:18 PM
Built for proportional control, the KDG4V-3 series is used in a lot of heavy industrial spots like die casting and foundry work, along with presses, machine tools, and primary metal applications.
