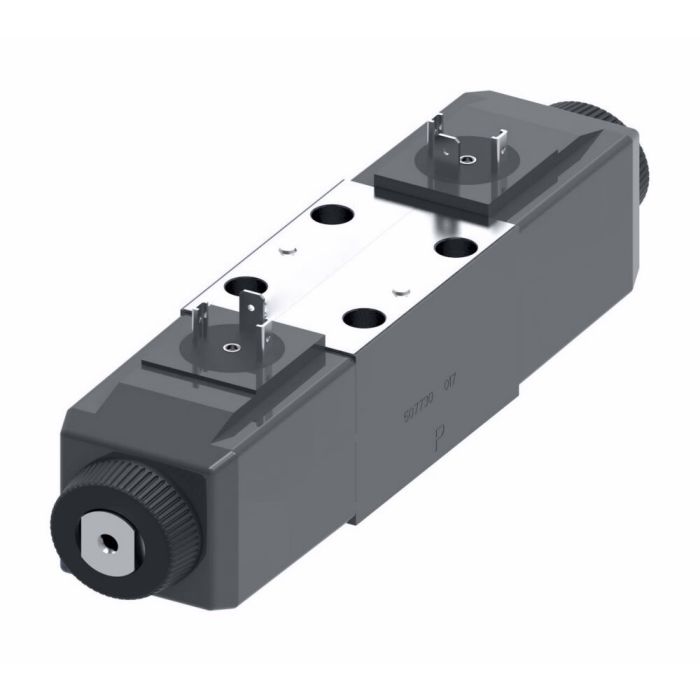

Danfoss / Eaton Vickers KDG4V-3 Series

Description & Features

Designed for versatility across various industrial applications, the Danfoss / Eaton Vickers KDG4V-3 Series proportional valve excels in environments such as die casting, machine tooling, and turbine control. Known for its direct-acting functionality, this valve comes in ultra, high, and standard performance levels to meet diverse operational demands. With a flow rate of 30 liters per minute, it ensures precise control and efficiency in systems requiring robust hydraulic solutions.

Enhanced with plug-and-play functionality, the KDG4V-3 Series reduces commissioning time, making it a reliable choice for marine, offshore, and primary metal applications. The fluorocarbon seal material guarantees durability under demanding conditions. This valve is a part of the Vickers sub-brand, known for its high-quality hydraulic components. Its compact width of 1.9 inches allows for easy integration into existing systems.

SKU: 02-147108

Supplier Part Number (MPN): 02-147108

Alternate Part Numbers: KDG4V333C30XHMUH760

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Type
Spring Centered
Design Series
60 Series
Dimensions
9.37 in L x 1.9 in W x 3.4 in H
Domestic/Import
Domestic
Feedback Sensor
Without Feedback Sensor
igs Only
With igs
Language
English
Manual Override
Water-Resistant
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Segment Code
B
Series
KDG4V-3 60 Series
Spool Type
P Blocked, A and B to Tank
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Similar Products

Model Number Flow Rate Voltage Rating Dimensions Price Action
Vickers KDG4V 3S 33C08A M U

02-135150

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C15A M U

02-135161

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C08A M U

02-140083

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C22A M U H5 60

02-140085

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C08A M U

02-141687

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 33C20N Z M

02-146721

9.37 in L x 1.9 in W x 3.4 in H

Danfoss / Eaton Vickers KDG4V-3 Series

02-146926

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C13N Z M

02-146928

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V333A20NHMUHA760

02-147599

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C13N H M U H7 60

02-147601

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C20N H M U H7 60

02-147633

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3S 33C22A M U

02-148364

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C22A M U GP5 60

02-148365

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3S 33C15A M U

02-155391

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 33C20N M U

02-156062

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V333C30XMUHA760

02-157027

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C 30X M U H7 60

02-157450

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V-3-33C30X-Z-M-U-H7-60

02-157628

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C07N M U

02-318375

9.37 in L x 1.9 in W x 3.4 in H

Vickers KDG4V 3 33C13N M U

02-318376

9.37 in L x 1.9 in W x 3.4 in H

VICKERS KDG4V-3S-33C04A-M-U-GP5-60

02-321545

8.64 in L x 1.81 in W x 3.58 in H

Vickers KDG4V 3 33C13N H M U G7 60

02-333024

9.37 in L x 1.9 in W x 3.4 in H

VICKERS-KDG4V-3S-33C15N-M-U-G5-60

02-343510

8.64 in L x 1.81 in W x 3.58 in H

VICKERS-KDG4V3-33C27N-Z-M-U-H7-60

02-352552

9.37 in L x 1.9 in W x 3.4 in H

VICKERS-KDG4V3-33C27N-Z-M-U-H7-60

02-352553

9.37 in L x 1.9 in W x 3.4 in H

VICKERS-KDG4V-3S-33C15A-H-M-U-GP5-60-EN5

02-355632

8.64 in L x 1.81 in W x 3.58 in H

VICKERS-KDG4V-3S-33C22N-M-U-H5-60

02-356806

8.64 in L x 1.81 in W x 3.58 in H

VICKERS KDG4V-3S-33C15A-H-M-U-HA5-60-EN5

02-360084

8.64 in L x 1.81 in W x 3.58 in H

VICKERS KDG4V-3S-33C22A-H-M-U-GP5-60

02-399213

8.64 in L x 1.81 in W x 3.58 in H

Product Questions & Answers (1)

Question by: Kirk R on Jun 11, 2025, 11:23 AM
Wondering if this'll work on my die casting machine?
Answer by: Customer Support on Jun 13, 2025, 6:36 AM
Application-wise, this Eaton Vickers proportional valve fits right in with die casting setups, along with machine tools, presses, and even marine/offshore equipment.
