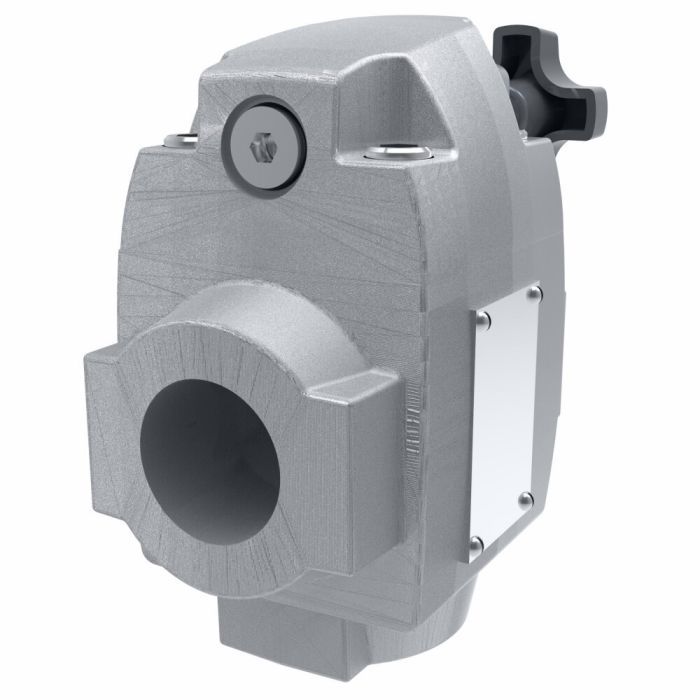

Vickers CG 06 BCV DG8BL V M

Description & Features

This Vickers CG 06 BCV DG8BL V M pressure control valve is designed for applications requiring an adjustable pressure relief or regulating valve to limit the pressure in a hydraulic circuit to a desired maximum. It features a plug-and-play design and moisture resistance.

This Vickers valve has a Buna-N seal material and a maximum flow rate of 227 liters per minute. It has a width of 5.03 inches.

SKU: 02-147814

Supplier Part Number (MPN): 02-147814

Specifications

Actuator Type Solenoid	Adjustment Range 8.5 to 70 bar, 100 to 210 bar	Adjustment Type Screw with Locknut	Body Material Iron	Design 51 Series	Dimensions 5.54 in L x 5.03 in W x 10.75 in H	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Hi-Vent Spring With Hi-Vent Spring	Indicator Light Without Indicator Light	Media Petroleum Oil	Nominal Size #06	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CG-06 Series	Valve Mount Type Subplate/Manifold	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Question by: Bonnie W on Jun 14, 2025, 8:11 AM

What's the max flow this valve can handle before it starts causing problems?

Answer by: Customer Support on Jun 16, 2025, 7:19 AM

Rated up to 227 liters per minute, so it's got plenty of headroom for most standard hydraulic circuits. As long as your system stays within that ceiling, you shouldn't run into flow-related pressure issues with this valve.
