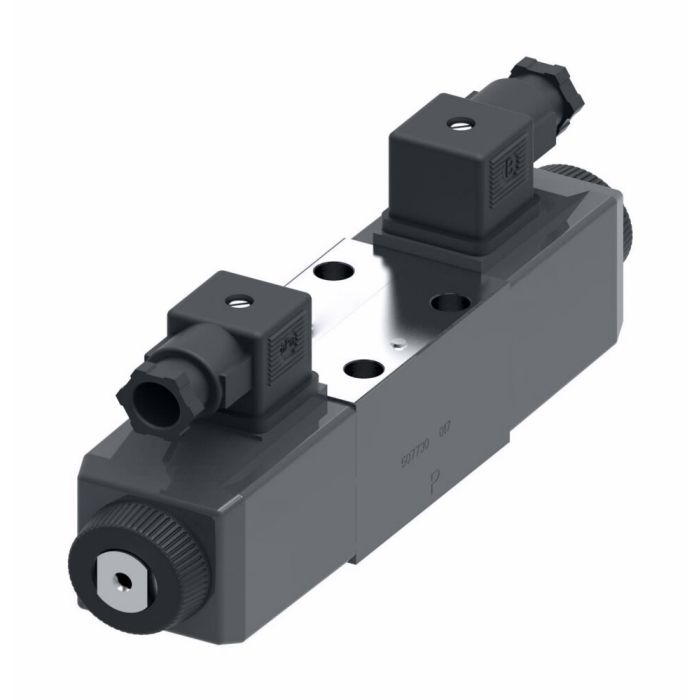

Vickers KDG4V 3S 33C22A M

Ask A Question

Description & Features

This Vickers KDG4V 3S 33C22A M valve is a direct-acting proportional valve suitable for applications such as die casting, foundry work, machine tools, and marine/offshore environments. It is also well-suited for presses, primary metal production, paper manufacturing, test equipment, simulation, and turbine control systems (wind, steam, and water).

Available in three performance levels, ultra, high, and standard, to suit a wide range of application requirements. The valve offers reduced commissioning time through plug-and-play functionality. It has a flow rate of 22 liters per minute and utilizes fluorocarbon seals. It has a product width of 1.81 inches.

SKU: 02-147980

Supplier Part Number (MPN): 02-147980

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Type
Spring Centered
Design Series
60 Series
Dimensions
8.64 in L x 1.81 in W x 3.58 in H
Domestic/Import
Domestic
Feedback Sensor
Without Feedback Sensor
Language
English
Manual Override
Plain
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Series
KDG4V-3 60 Series
Spool Type
P Blocked, A and B to Tank
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Scott R on Aug 22, 2025, 1:33 PM
got a machine tool setup running proportional control and been hunting for a direct-acting valve that won't eat up half my day getting commissioned, this one plug-and-play or does it need a bunch of configuration out of the gate?
Answer by: Customer Support on Aug 24, 2025, 6:33 AM
Plug-and-play is exactly how it works. The KDG4V 3S 33C22A M is built to reduce commissioning time right out of the box, so you're not spending hours on initial setup just to get it running. For machine tool applications specifically, that's one of the situations this valve was designed to handle, so you're in the right ballpark.
