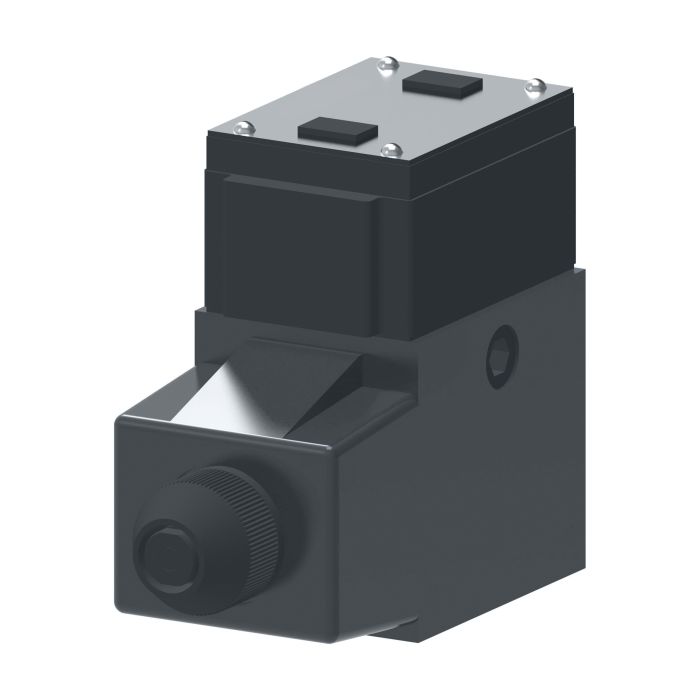

main product photo

Vickers F3 DG4S4W 012A B 60

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial environments, the Vickers F3 DG4S4W 012A B 60 is a single-stage directional control valve with a flow rate of 95 litres per minute. Viton seals provide reliable performance across a wide range of fluid compatibility requirements, making this valve well suited for applications involving elevated temperatures or aggressive hydraulic fluids.

Mounting conforms to industry-standard surfaces, allowing straightforward integration into existing hydraulic circuits. This valve is applicable across a broad range of industries, including machine tool, press, marine and offshore, die casting and foundry, primary metal, paper, test equipment and simulation, and turbine control, covering wind, steam, and water turbine systems.

SKU: 02-148047

Supplier Part Number (MPN): 02-148047

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
6.84 in L x 2.58 in W x 5.41 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Coil Wire Housing
Indicator Light
Without Indicator Light
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
C
Series
DG4S4-01 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Bonnie W on Apr 25, 2025, 4:00 PM
Flow rate on this one says 95 litres per minute, that enough for a press application runnin pretty continuous cycles?
Answer by: Customer Support on Apr 27, 2025, 6:03 AM
For press applications, 95 litres per minute is a solid flow rate and sits well within what most industrial press circuits call for. The valve is specifically listed for press use, so it's built to handle that kind of demanding, repeat-cycle environment. The Viton seals also help hold up when fluid temps climb, which press systems tend to do over long runs.
