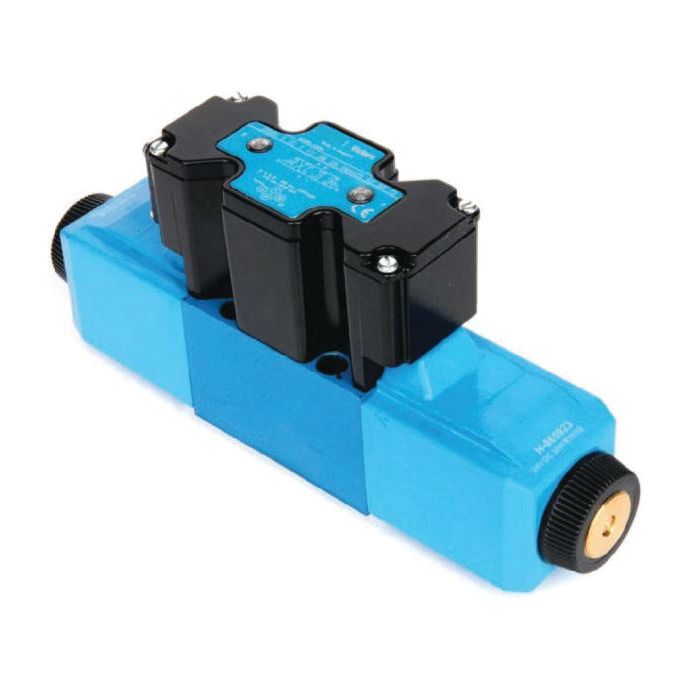

Vickers DG4V 3 2N M FW B6

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding hydraulic circuits, the Vickers DG4V 3 2N M FW B6 is a single-stage directional control valve rated for flow up to 80 litres per minute. Buna-N seals provide reliable fluid compatibility across a wide range of hydraulic media, and the valve carries CSA approval for added compliance confidence.

Mounting follows industry-standard surface patterns, making integration straightforward in new builds and retrofit applications alike. This valve suits a broad range of industries, including machine tool, press, die casting and foundry, primary metal, marine and offshore, turbine control, and test and simulation equipment, reflecting the versatility of the Vickers DG4V-3 platform across high-cycle and precision-control environments.

SKU: 02-148507

Supplier Part Number (MPN): 02-148507

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
5.75 in L x 1.8 in W x 3.57 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
No Spring Detented
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Hugh R on May 2, 2025, 2:51 PM
Reckon this valve would hold up okay in a die casting operation? Those machines can be pretty demanding.
Answer by: Customer Support on May 3, 2025, 9:42 PM
Its applications cover die casting and foundry work, so it should be suitable for that type of environment. Just be sure to check your specific flow rate requirements.
