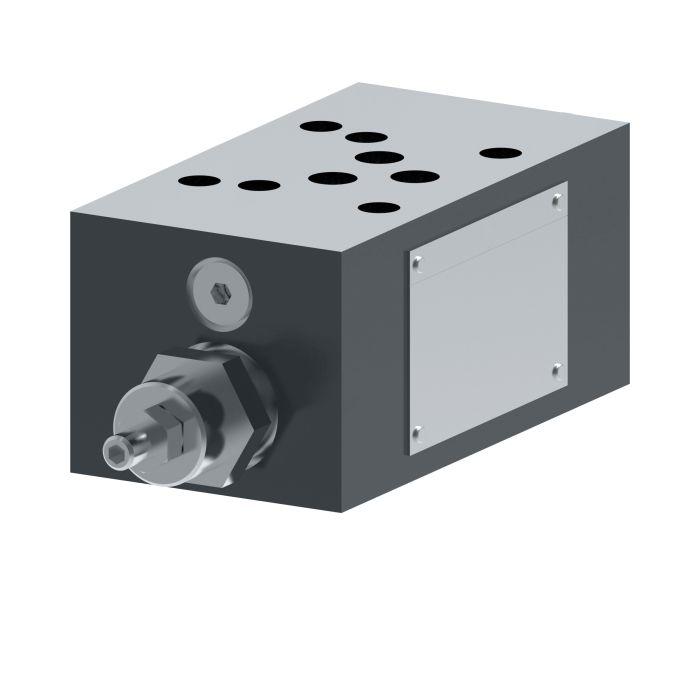

Vickers DGMC2 5 AB BW BA BW

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers DGMC2 5 AB BW BA BW is a SystemStak directional control valve built to the 30 design standard. Rated for flow up to 120 litres per minute, it is well suited to high-cycle applications across machine tool, press, primary metal, marine/offshore, die casting and foundry, turbine control, and test and simulation environments.

Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media. The SystemStak mounting format reduces installation complexity by eliminating external leakage paths and cutting the number of external connections required, which also strengthens resistance to contamination ingress. No special features are noted beyond the standard configuration.

SKU: 02-149361

Supplier Part Number (MPN): 02-149361

Specifications

Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type SAE	Design 30 Series	Dimensions 8.46 in L x 2.82 in W x 1.97 in H	Domestic/Import Domestic	End Type SAE	External Drain Without External Drain	Function 1 Pressure Adjustment 60 to 1450 psi	Function 2 Pressure Adjustment 60 to 1450 psi	Gauge Port Thread SAE 4 O-ring Boss Port	Media Petroleum Oil	Nominal Size #5	Number of Stages 2	P Port Acted Upon B Cylinder Port	Performance Standard	Port Drained Into B Cylinder Port	Port Drained Into Dual A Cylinder Port	Port Operated Upon A Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Vince J on Aug 5, 2025, 9:46 AM

flow rate on this thing tops out at 120 LPM, is that enough for a press application or should I be looking at something bigger?

Answer by: Customer Support on Aug 6, 2025, 5:51 PM

For most press circuits, 120 litres per minute is a solid working capacity. Press is actually one of the named applications this valve was built around, so you're in the right ballpark. Whether it fully covers your system depends on your actuator size and cycle speed, but the flow rating itself is not a limiting factor for typical press work.

Question by: Carl J on Aug 22, 2025, 10:08 AM

Hey, I'm wondering if this Vickers valve would be a good fit for a die casting machine I'm working on?

Answer by: Customer Support on Aug 23, 2025, 8:58 PM

It's designed for demanding industrial hydraulic circuits, and die casting is listed as one of its applications, so it should be a good fit.
