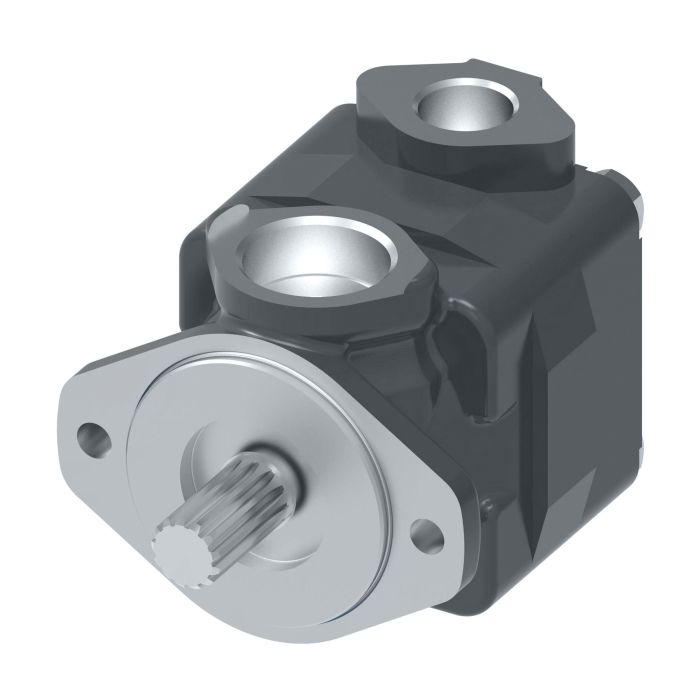

Vickers V20F 1D9S 38D4H 22

Ask A Question

Description & Features

Designed for demanding industrial fluid power applications, the Vickers V20F 1D9S 38D4H 22 is a cast iron vane pump built on the proven V20 Series platform from Vickers by Danfoss/Eaton. Its pressure-balanced, modular 12-vane design helps reduce noise and flow pulsation, making it well suited for environments where consistent, smooth hydraulic output is required.

With a flow rate of approximately 76.3 litres per minute and Buna-N seals, this pump is compatible with a range of hydraulic oils and serves applications including metal cutting machinery, plastic injection molding, dump trucks, wheel loaders, and oil and gas equipment. The V20 Series offers a wide selection of available displacements, giving system designers flexibility when specifying for varied load demands.

SKU: 02-152440-4

Supplier Part Number (MPN): 02-152440-4

Specifications

Brand
Vickers by Danfoss
Cartridge Type
22 Design
Cover Type
Flow Control Valve
Dimensions
8.12 in L x 5.12 in W x 4.79 in H
Drive Shaft Type
Splined
Housing Material
Iron
Inlet Size
1-5/16-12
Inlet Type
Threaded
Mounting Type
Flanged
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Rotation Direction
Clockwise
Seal Material
Buna-N
Seal Type
Standard
Series
V20 Series
Shaft Pitch
16/32
Vane Type
Balanced

Product Questions & Answers (2)

Question by: Keith E on Sep 19, 2025, 10:10 AM
Reckon this pump could handle bein' hooked up to a metal cutting machine?
Answer by: Customer Support on Sep 20, 2025, 7:32 PM
Application-wise, this V20 Series vane pump is indeed used in metal cutting machinery, along with plastic injection molding, dump trucks, wheel loaders, and even oil and gas equipment.
Question by: Billy B on Sep 7, 2025, 1:19 PM
pump puts out around 76 liters a minute -- is that measured at a specific pressure or just free flow? trying to figure out if itll hold up under load in a metal cutting setup we got running pretty much all day
Answer by: Customer Support on Sep 9, 2025, 10:05 AM
The 76.27 litre per minute flow rating is what's published for this pump as part of its standard specification. For metal cutting machinery, this unit is actually one of the listed application fits, so that side of things lines up. The pressure-balanced vane design helps keep output consistent rather than letting it fluctuate under varying load conditions, which matters a lot in continuous cutting cycles. The 12-vane configuration specifically works to reduce flow pulsation, so what you're pushing downstream stays steadier than you'd get out of a lot of comparable designs.
