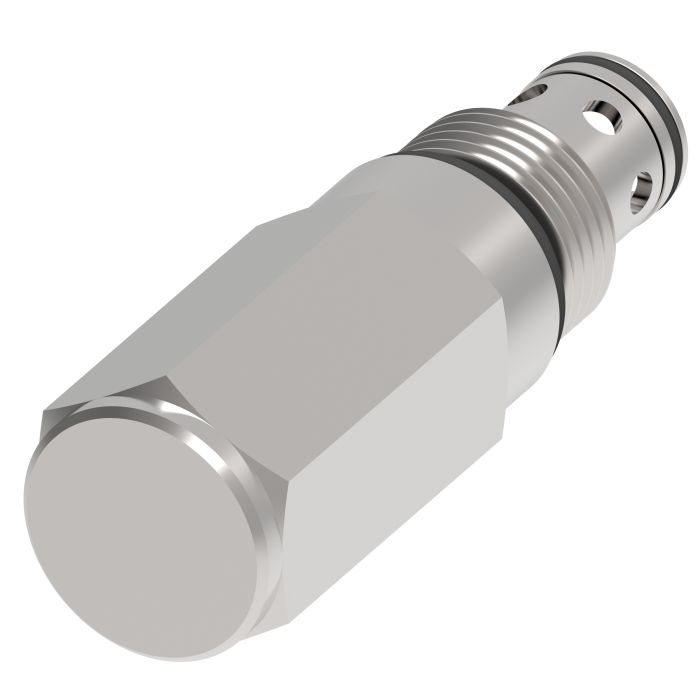

main product photo

VICKERS RV2-10-F-0-35/19

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers RV2-10-F-0-35/19 is a poppet-style pressure control valve rated to 350 bar (5,000 psi) with a flow capacity of up to 300 L/min (80 USgpm). Its compact construction makes it well suited for installations where mounting space is limited without sacrificing pressure management capability.

Part of the Vickers by Danfoss RV2-10 series, this valve is commonly used in harvesters, refuse haulers, and a range of mobile and industrial hydraulic circuits. The poppet-style design contributes to reliable sealing and consistent pressure response across varying flow conditions. At 114 litres per minute flow rate, it balances responsiveness with practical sizing for mid-range hydraulic systems.

SKU: 02-153302

Supplier Part Number (MPN): 02-153302

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Dimensions
3.33 in L x 1 in W x 1 in H
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
B
Series
RV2-10 Series
Style
Poppet

Product Questions & Answers (2)

Question by: Shawn R on Oct 7, 2025, 8:51 AM
got a harvester that keeps blowing relief valves under load, would the RV2-10-F-0-35/19 hold up to that kind of work or is it more of a light duty setup?
Answer by: Customer Support on Oct 9, 2025, 6:34 AM
Harvesters are actually one of the named applications for this valve, so it's built with that kind of environment in mind. The poppet-style design gives you consistent pressure response even when flow conditions are shifting around, which is exactly what you run into under harvesting loads. It's rated to 350 bar (5,000 psi) with a max flow capacity of 300 L/min, so it's not a light-duty piece by any stretch.
Question by: Roger S on Oct 26, 2025, 10:07 AM
Will this handle the pressure on my refuse truck, or do I need something beefier?
Answer by: Customer Support on Oct 28, 2025, 6:35 AM
This Vickers RV2-10 series pressure control valve is rated up to 350 bar (5,000 psi), which should be suitable for most refuse hauling applications.
