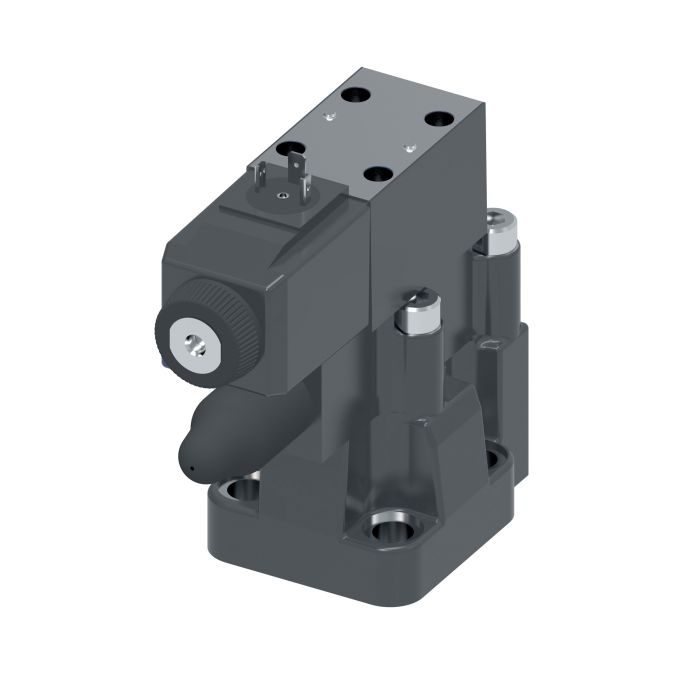

VICKERS KCG 6 W250 3 Z M U

Ask A Question

Description & Features

The VICKERS KCG 6 W250 3 Z M U is a direct-acting proportional valve suitable for a range of applications including die casting, foundry, machine tool, marine, offshore, press, primary metal, paper, test equipment, simulation, and turbine control (wind, steam, and water).

This Vickers valve is available in three performance levels: ultra, high, and standard, to suit a wide range of application requirements. It is designed to reduce commissioning time through plug-and-play functionality and features Buna-N seals. It has a flow rate of 200 liters per minute.

SKU: 02-155977

Supplier Part Number (MPN): 02-155977

Specifications

Actuator Type
Pilot Operated, Solenoid
Build Orientation
Solenoid at B Port End
Design
10 Series
Dimensions
7.07 in L x 3.23 in W x 7.8 in H
Domestic/Import
Import
Feedback Sensor
Without Feedback Sensor
Manual Adjustment
Screw and Locknut
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Nominal Size
#06
Number of Stages
2
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Segment Code
B
Series
KCG6 Series
Valve Mount Type
Subplate

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Clint H on Nov 22, 2025, 5:37 PM
What all can this valve be used for? Got a press line and a machine tool setup both pulling from the same hydraulic system and trying to figure out if one valve can cover both.
Answer by: Customer Support on Nov 24, 2025, 6:28 AM
Press and machine tool applications are both on the supported list for this one, so you're in good shape there. The KCG 6 W250 3 Z M U is a direct-acting proportional valve rated at 200 liters per minute, and its application range also covers die casting, foundry work, marine and offshore environments, primary metal, paper, test equipment, simulation, and turbine control. Running it across multiple application types in the same system is exactly the kind of scenario this valve was built around.
